Land Rover Freelander Workshop Manual (1998-2000)15 · Manual gearbox - PG1
15 · Transmission

Gearbox - ’l’ series (page 2 of 6)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Manual gearbox - PG1Gearbox - ’l’ series · page 2 of 6
  1. Remove splash shield.
  2. Drain lubricating fluid from gearbox. See MAINTENANCE.
  3. Drain lubricating fluid from IRD unit. See MAINTENANCE.

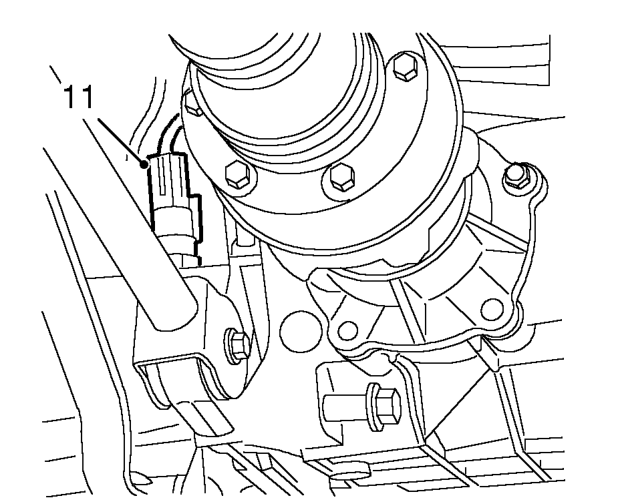

  4. Remove LH and RH drive shafts. See DRIVE SHAFTS, Repairs.
Remove LH and RH drive shafts. See DRIVE SHAFTS, Repairs.
  1. Disconnect multiplug from VSS.
Disconnect multiplug from VSS.

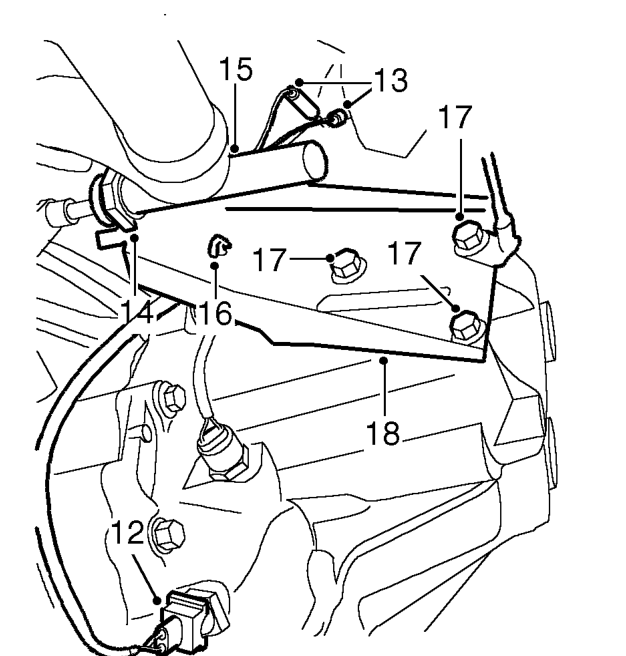

  1. Disconnect multiplug from 1st gear sensor.
  2. Disconnect reverse lamp switch wires.
  3. Remove clip securing clutch slave cylinder to bracket.
  4. Position slave cylinder aside.
  5. Release 1st gear sensor harness clip from clutch slave cylinder bracket.
  6. Remove 3 bolts securing clutch slave cylinder bracket.

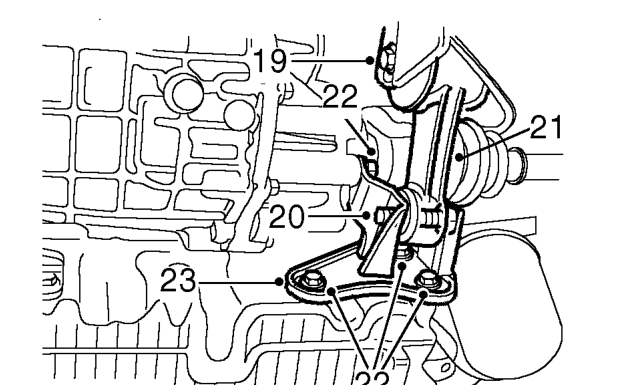

  7. Remove slave cylinder bracket.
Remove slave cylinder bracket.
  1. Remove bolt securing engine lower tie rod to subframe.
  2. Remove bolt securing engine lower tie rod to bracket on sump.
  3. Remove tie rod from bracket.
  4. Remove 4 bolts securing tie rod bracket to sump and IRD.
  5. Remove tie rod bracket.
