Rear suspensionBush - trailing link - rear

BUSH - TRAILING LINK - REAR

Service repair no - 64.15.11

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

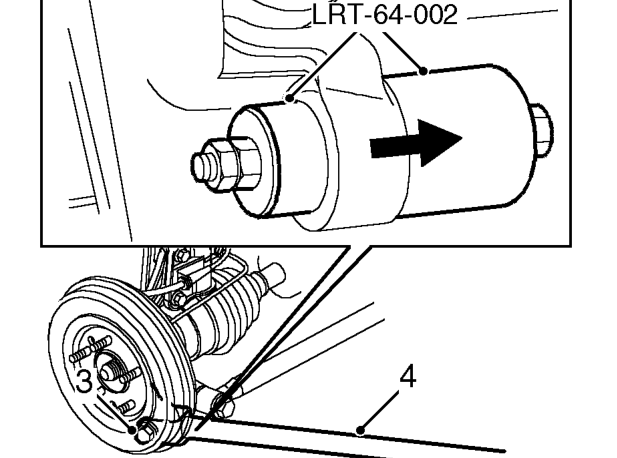

Bush - trailing link - rear – Remove road wheel(s).
  1. Remove nut and bolt securing trailing link to hub.
  2. Remove link from hub and tie aside.
  3. Using LRT-64-002 remove trailing link bush from hub.

Refit

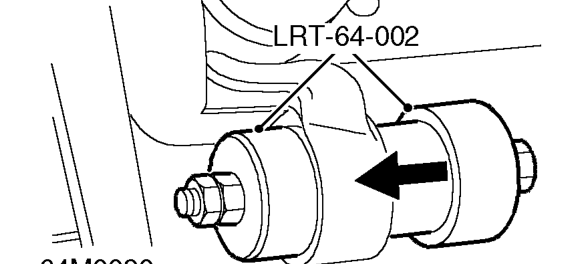

Bush - trailing link - rear – Using LRT-64-002 remove trailing link bush from hub.
  1. Ensure bush bore in hub is clean.
  2. Using LRT-64-002 fit new bush into hub.
  3. Fit trailing link to hub, fit nut and bolt but do not tighten at this stage.

CAUTION: Nuts and bolts must be tightened with weight of vehicle on suspension.

  1. Support weight of vehicle with jack under rear hub.
  2. Tighten trailing link to hub nut and bolt to 120 Nm.
  3. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
  4. Remove stand(s) and lower vehicle.
  5. Check and if necessary adjust rear wheel alignment. See STEERING, Adjustments.
