Damper - rear

Refit

1. Fit hub to drive shaft.
2. Fit hub to damper and tighten nuts and bolts to 205 Nm.

NOTE: Ensure that washers are fitted to both ends of bolt.

3. Fit nut, bolt and washers securing transverse links to hub and tighten nut to 120 Nm.
4. Fit trailing link to hub, tighten nut and bolt to 120 Nm.
5. Clean ABS sensor, smear sensor with an anti-seize grease and fit sensor to hub.
6. Fit brake pipe to wheel cylinder and tighten nut to 14 Nm.
7. Fit clip securing brake pipe to bracket.
8. Fit handbrake cable to back plate.
9. Fit brake shoe assembly. See BRAKES, Repairs.
10. Fit NEW drive shaft nut and tighten to 400 Nm. Stake nut to shaft.
11. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
12. Remove stand(s) and lower vehicle.

DAMPER - REAR

Service repair no - 64.30.02 Service repair no - 64.20.01 Spring - rear

Remove

1. Raise rear of vehicle, one side.

WARNING: Support on safety stands.

2. Remove road wheel(s).

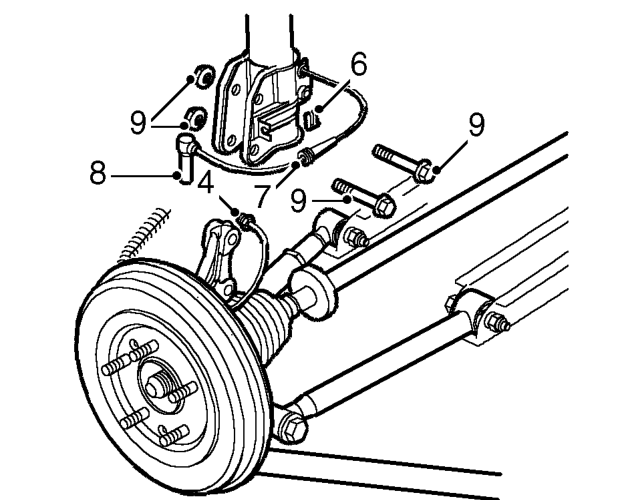

3. Fit clamp to brake hose.

4. Disconnect brake pipe from brake hose.
5. Position cloth to collect spillage.

CAUTION: Plug the connections.

6. Remove ’C’ clip from brake hose.
7. Release ABS harness from brackets.
8. Release ABS sensor from hub assembly.
9. Remove 2 bolts securing damper to hub carrier. Release damper from hub carrier.

CAUTION: Support the hub assembly.

10. Remove rear quarter lower trim casing. See BODY, Interior trim components.
