Land Rover Freelander Workshop Manual (1998-2000)21 · Rear suspension
21 · Steering & suspension

Bearing - hub - rear (page 3 of 3)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Rear suspensionBearing - hub - rear · page 3 of 3
Diagram

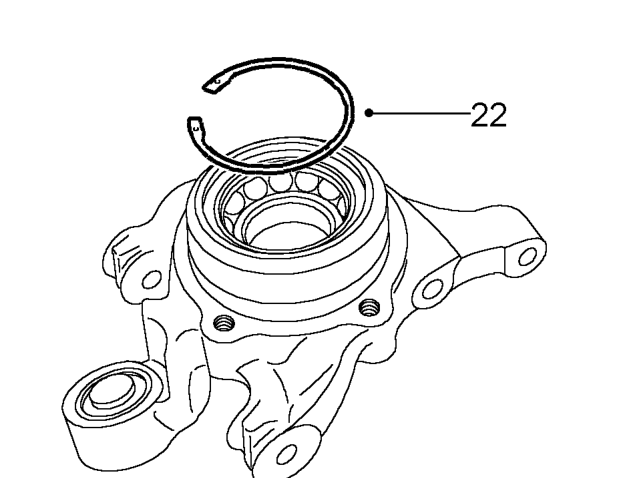

  1. Remove circlip from bearing.
Remove circlip from bearing.

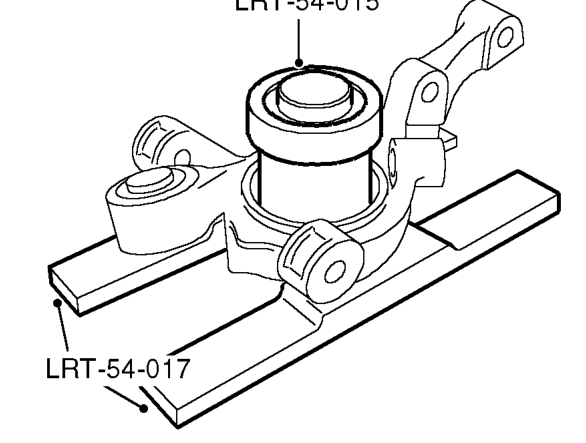

  1. Position hub to press and press out bearing using tool LRT-54-015 and LRT-54-017 discard bearing.

CAUTION: Never re-use existing bearing.

  1. Clean hub assembly and drive flange.
Clean hub assembly and drive flange.

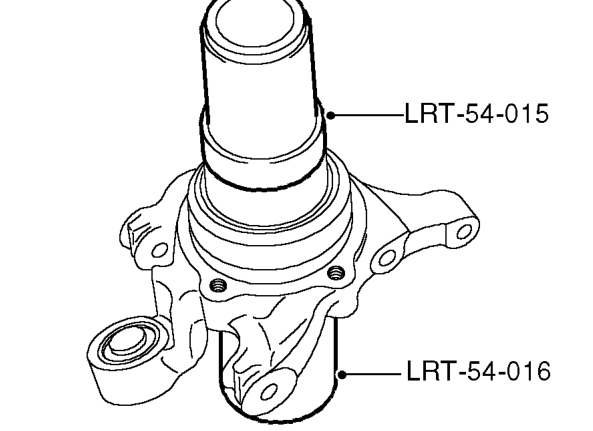

  1. Support hub on tool LRT-54-016 and press in new bearing using tool LRT-54-015.
  2. Fit circlip.
  3. Fit hub to vice, fit back plate and tighten bolts to 45 Nm.
Fit hub to vice, fit back plate and tighten bolts to 45 Nm.

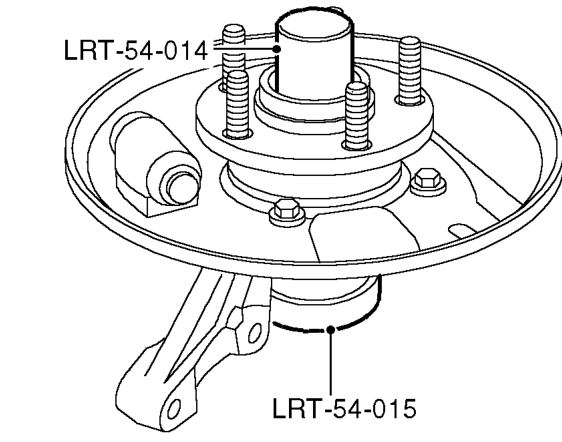

  1. Support hub on tool LRT-54-015 and press flange into bearing using tool LRT-54-014.
