Rear suspensionBearing - hub - rear · page 2 of 3
  1. Remove ABS sensor from hub.
  2. Remove nut and bolt securing trailing link to hub.
  3. Remove nut, bolt and washers securing transverse links to hub.
  4. Remove 2 nuts and bolts securing hub to damper.
  5. Release damper from hub.
  6. Remove hub from drive shaft. Do not carry out further dismantling if component is removed for access only.
Remove hub from drive shaft. Do not carry out further dismantling if component is removed
  1. Position swivel hub assembly to press, support on tools LRT-54-017 and press out drive flange using tool LRT-54-014.

NOTE: Outer bearing inner track will remain on drive flange.

Position swivel hub assembly to press, support on tools LRT-54-017 and press out drive fla

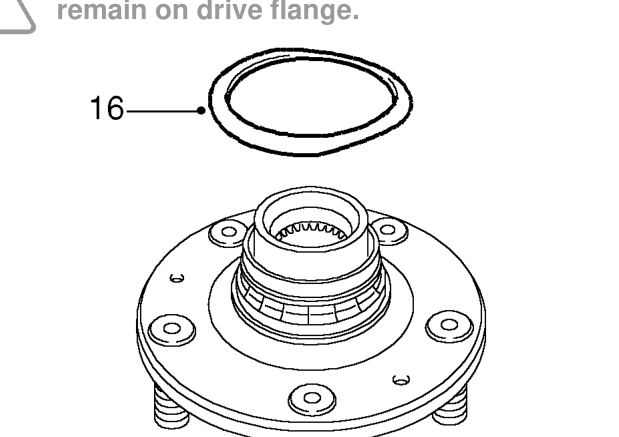

  1. Remove bearing sealing plate from inner track
  2. Position drive flange in a vice.
Position drive flange in a vice.

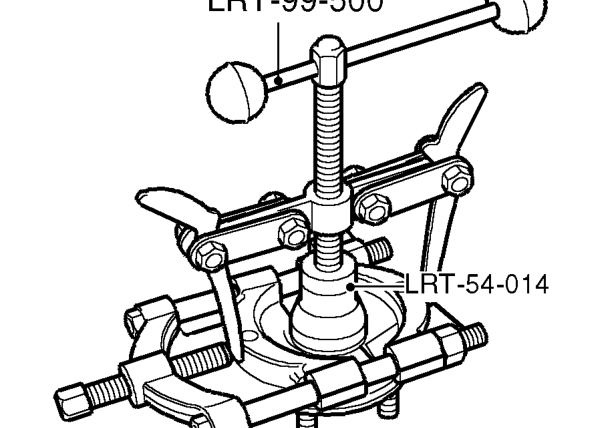

  1. Clamp both halves of a suitable bearing separator around bearing inner track ensuring that inner lip fits in groove on inner track.
  2. Using tool LRT-99-500 and thrust pad LRT-54-014 withdraw inner track from drive flange.
Using tool LRT-99-500 and thrust pad LRT-54-014 withdraw inner track from drive flange.

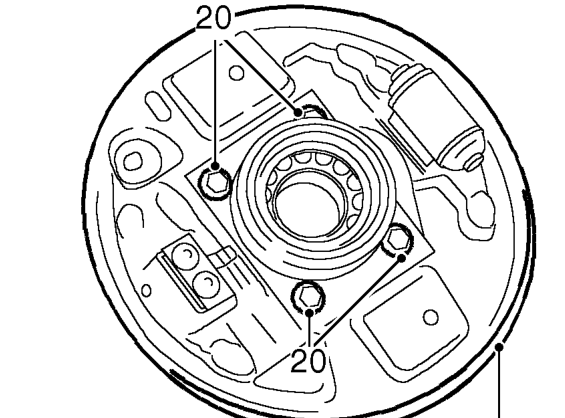

  1. Fit hub to vice and remove 4 bolts securing backplate to hub.
  2. Remove backplate.
