Rear suspensionBearing - hub - rear · page 1 of 3

BEARING - HUB - REAR

Service repair no - 64.15.14

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

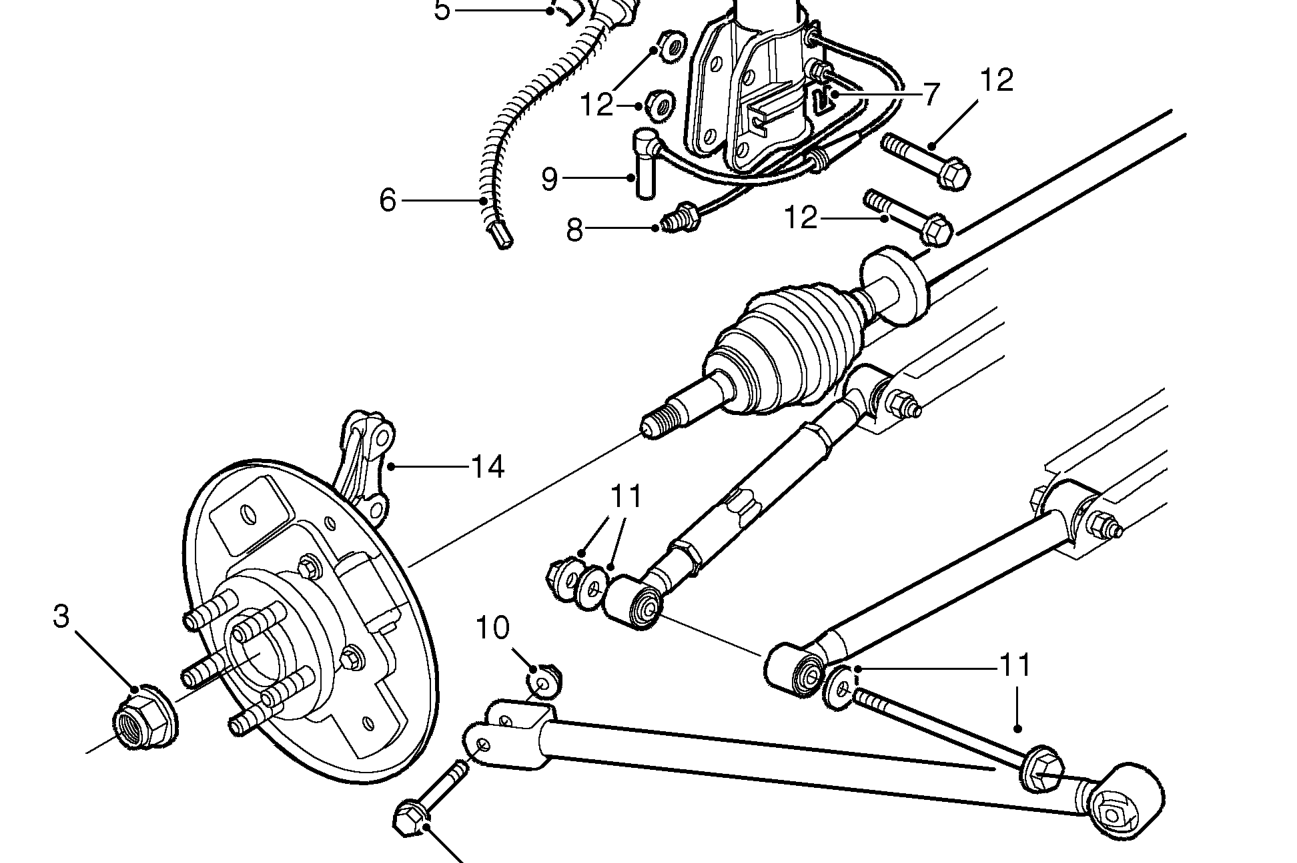

Bearing - hub - rear – Remove road wheel(s).
  1. Remove and discard drive shaft nut.
  2. Remove brake shoes as an assembly. See BRAKES, Repairs.
  3. Release handbrake cable retainer from backplate.
  4. Remove cable from backplate.
  5. Remove clip securing brake pipe to bracket.
  6. Remove brake pipe union from wheel cylinder.

CAUTION: Plug the connections.
