Rear suspensionTransverse link - adjustable - rear

TRANSVERSE LINK - ADJUSTABLE - REAR

Service repair no - 64.35.70

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

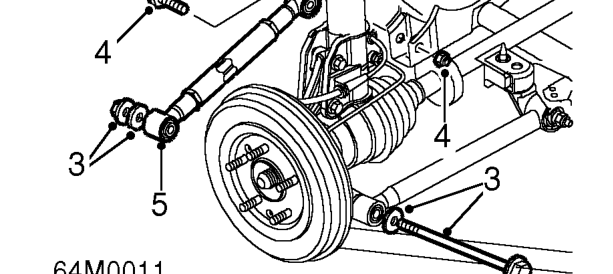

Transverse link - adjustable - rear – Remove road wheel(s).
  1. Remove nut and bolt securing link to hub.
  2. Remove nut, bolt and washers securing link to subframe.
  3. Remove link.

Refit

  1. Fit link.

NOTE: Ensure that washers are fitted to both ends of bolt.

  1. Fit nuts, bolts and washers securing link to hub and subframe but do not tighten.

CAUTION: Nuts and bolts must be tightened with weight of vehicle on suspension.

  1. Support weight of vehicle with jack under rear hub.
  2. Tighten nuts and bolts to 120 Nm.
  3. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
  4. Remove stand(s) and lower vehicle.
  5. Check and if necessary adjust rear wheel alignment. See STEERING, Adjustments.
