Steering (Steering column): Description and operation

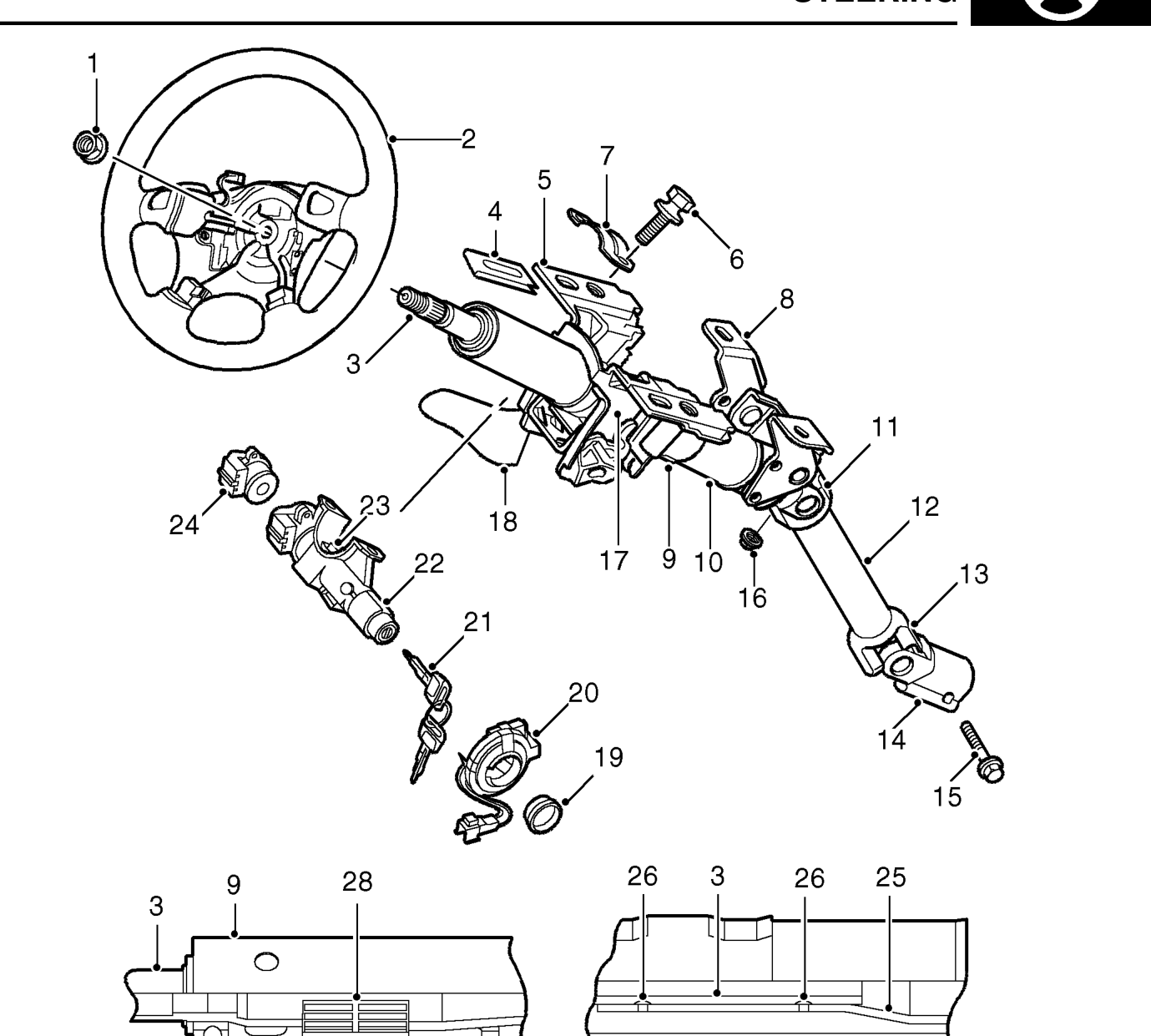

STEERING COLUMN

1. Locknut
2. Steering wheel
3. Upper shaft
4. ’U’ Clip - 2 off
5. ’Curling’ plate - 2 off
6. Shear bolt - 2 off
7. Clamp plate
8. Lower mounting
9. Upper column tube
10. Lower column tube
11. Universal joint
12. Intermediate shaft
13. Universal joint
14. Adaptor
15. Clamp bolt
16. Locknut, Mounting - 4 off
17. Upper mounting
18. Column adjuster
19. Light ring, ignition switch
20. Passive coil
21. Vehicle key
22. Steering column lock assembly
23. Lock bolt
24. Ignition switch
25. Lower shaft
26. Injection moulded shear pins
