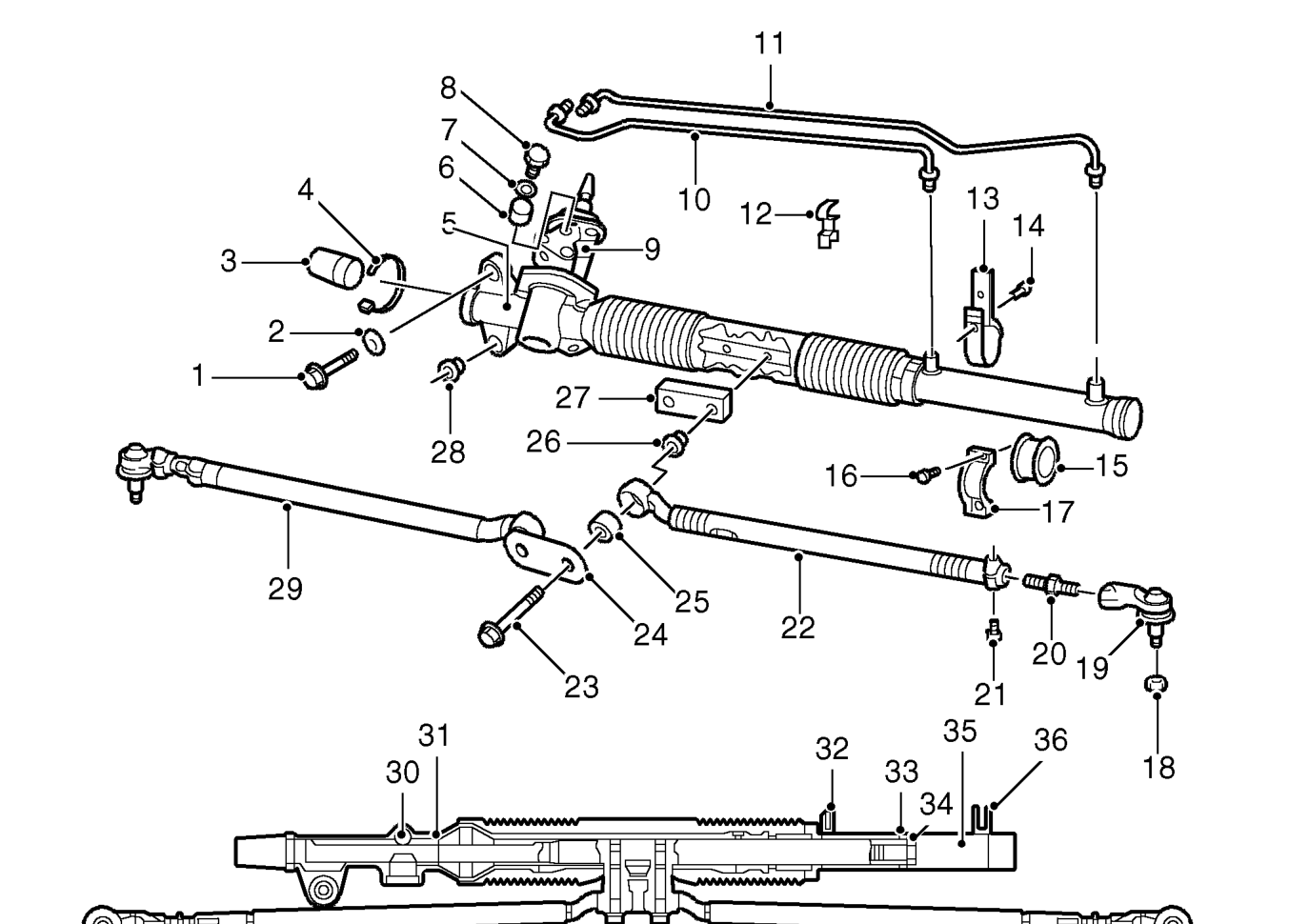

Steering rack - RHD shown, LHD similar

STEERING RACK - RHD SHOWN, LHD SIMILAR

1. Flanged bolt - 2 off
2. Washer - 1 off (lower bolt only)
3. Dust cover
4. Tie
5. Steering rack casting
6. Non return valve
7. Seal
8. Adaptor
9. Valve unit
10. Feed pipe (6 mm dia.)
11. Feed pipe (10 mm dia)
12. Pipe clip - 2 off
13. Pipe support bracket
14. Bolt
15. Rack mounting cushion
16. Bolt - 2 off
17. Rack mounting bracket
18. Nut - 2 off
19. Track rod end - 2 off
20. Turnbuckle - 2 off
21. Bolt - 4 off
22. Track rod LH
23. Track rod bolt - 2 off
24. Support plate
25. Inner track rod bush - 2 off
26. Spacer - 2 off
27. Slider and bush assembly
28. Mounting bush - 2 off
29. Track rod RH
30. Steering pinion
31. Steering rack
32. Cylinder annulus port
33. Piston seal
34. Piston head
35. Cylinder
36. Cylinder full area port
