Steering (Valve Unit): Description and operation
- Make
- Land Rover
- Model
- Freelander Workshop Manual
- Year
- 1998–2000
- Section
- Description and operation › Valve Unit

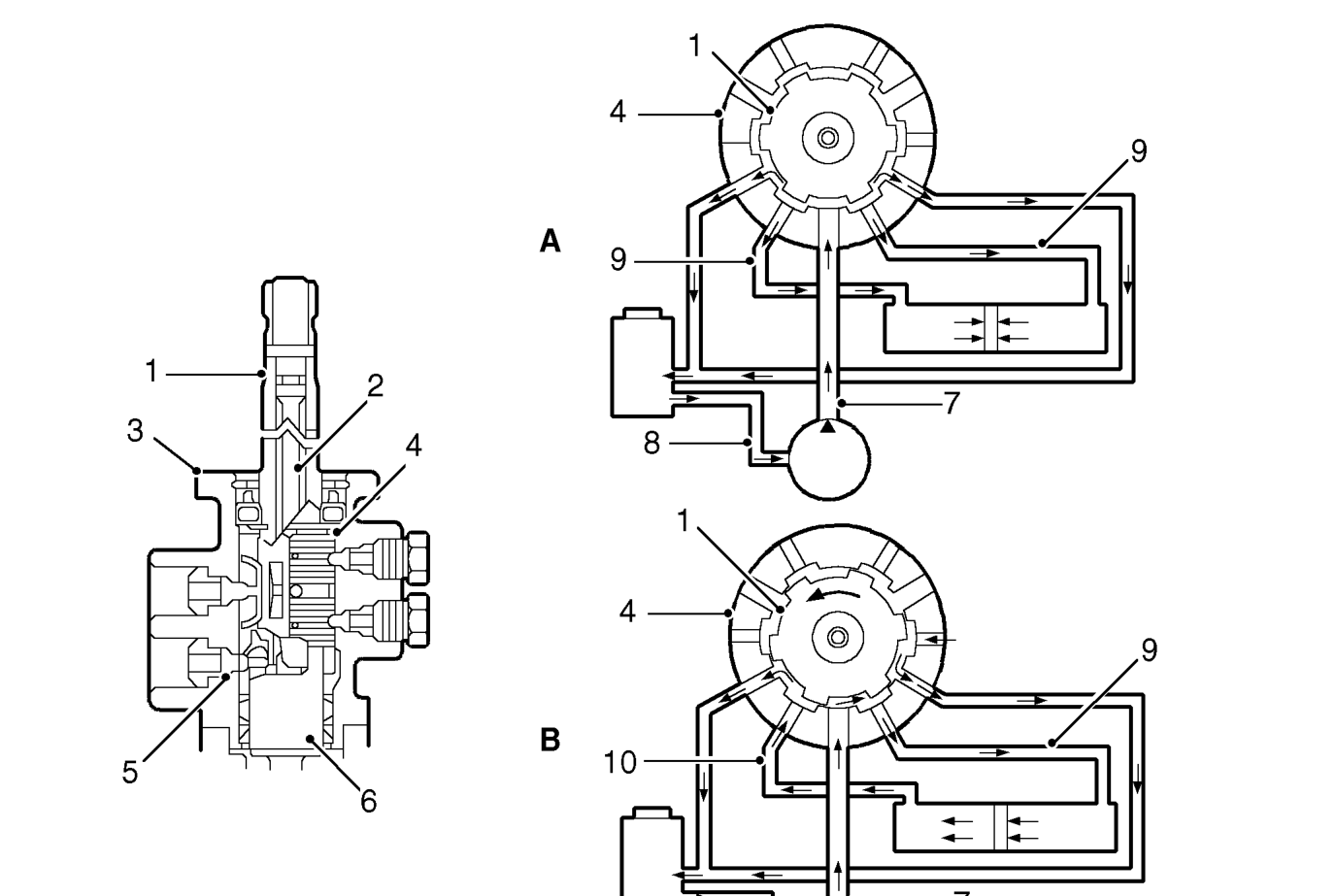

SteeringValve Unit
Valve Unit
A = Neutral Steering B = Left Steering (Right Steering Similar)
- Rotor
- Torsion bar
- Valve unit
- Sleeve
- Pin - Torsion bar to pinion shaft
- Pinion shaft
- Pressure from pump
- Return to pump
- Pressure flow to hydraulic cylinder
- Return flow from cylinder
