Freelander System Description and Operation
BRAKES
70-12
DESCRIPTION AND OPERATION

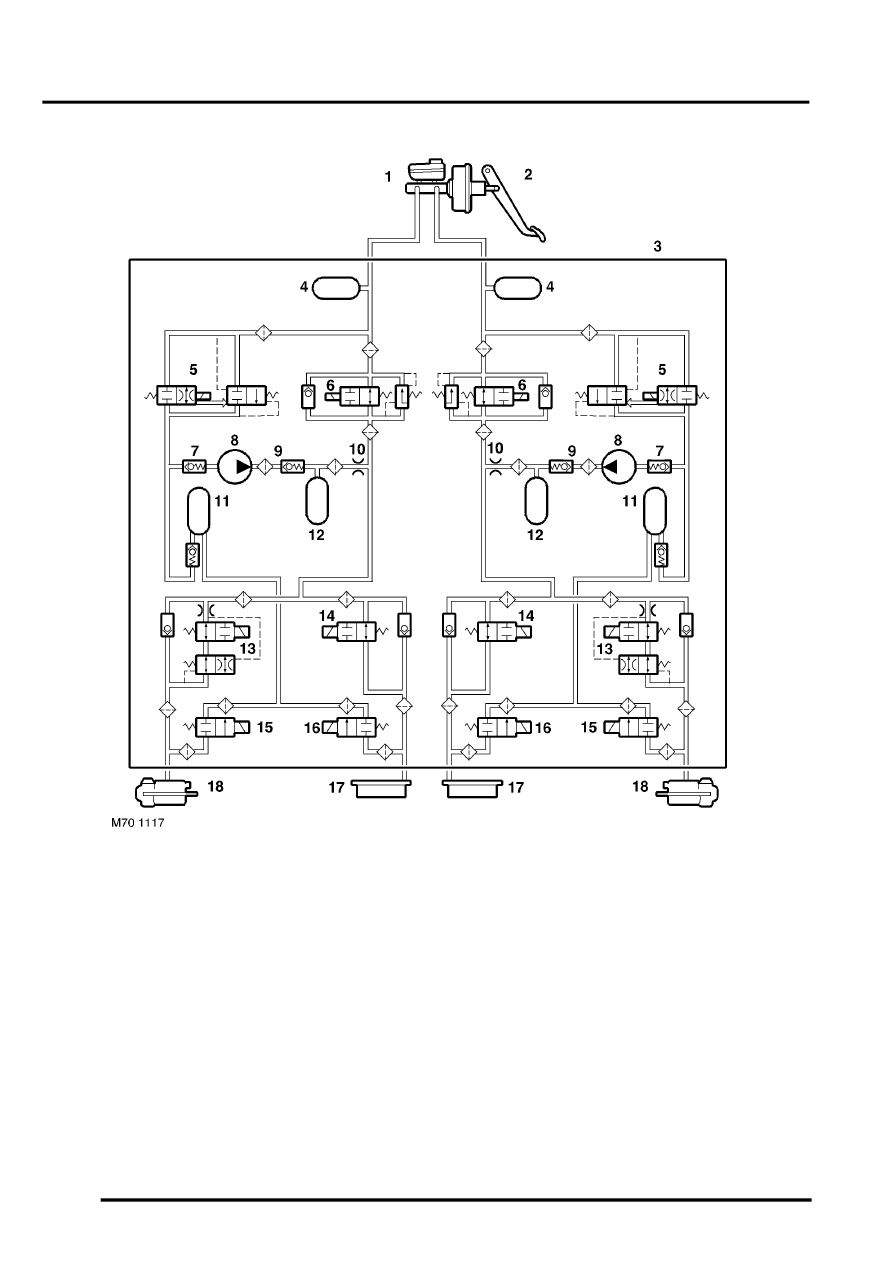

ABS Modulator Schematic (From 2002 MY)
1 Master cylinder
2 Brake pedal
3 ABS modulator
4 Pulsation damper
5 Shuttle valve
6 Separation valve (with integrated pressure
relief valve)
7 Check valve
8 Return pump
9 Check valve
10 Restrictor
11 Low pressure accumulator
12 Damper chamber
13 Front brake inlet valve
14 Rear brake inlet valve
15 Front brake outlet valve
16 Rear brake outlet valve
17 Rear brake
18 Front brake
