Ancillary drive belt - K1.8 with A/C
$% 86.10.03
Remove
1. Disconnect battery earth lead.
2. Remove PAS pump drive belt.
STEERING, REPAIRS, Drive belt -

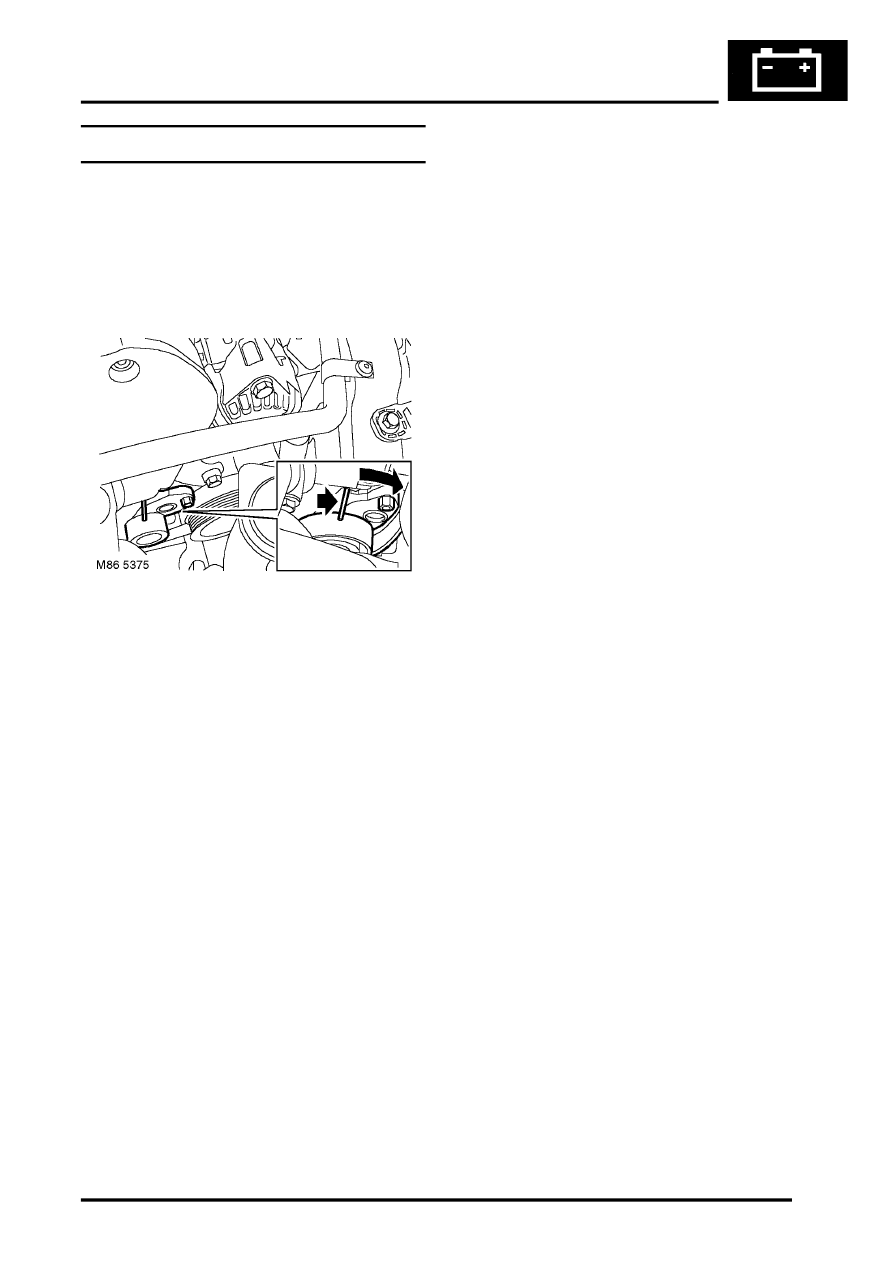

3. Fit a 13 mm spanner to hexagon on belt
tensioner and rotate fully clockwise to release
tension on drive belt.
4. To hold tensioner in this position, use a suitable
pin, not exceeding 3 mm diameter, fitted into
hole in tensioner backplate.
5. Remove drive belt.
Refit
1. Clean drive belt pulley grooves and ensure
grooves are not damaged.
CAUTION: Examine drive belt for signs of
wear. A drive belt with cracked ribs is
acceptable. A drive belt that has loose or
missing parts of ribs must be changed.
2. Fit drive belt. Ensure belt is located correctly in
pulley grooves.
3. Release tension, remove retaining pin and
lower tensioner pulley onto drive belt.
4. Fit PAS pump drive belt.
STEERING, REPAIRS, Drive belt -
5. Connect battery earth lead.
