Freelander Service Procedures
CHARGING AND STARTING
86-1-10 REPAIRS
Ancillary drive belt - KV6
$% 86.10.03
Remove
1. Disconnect battery earth lead.
2. Remove top arm.
ENGINE - K SERIES KV6, REPAIRS,
Arm assembly - engine mounting RH.

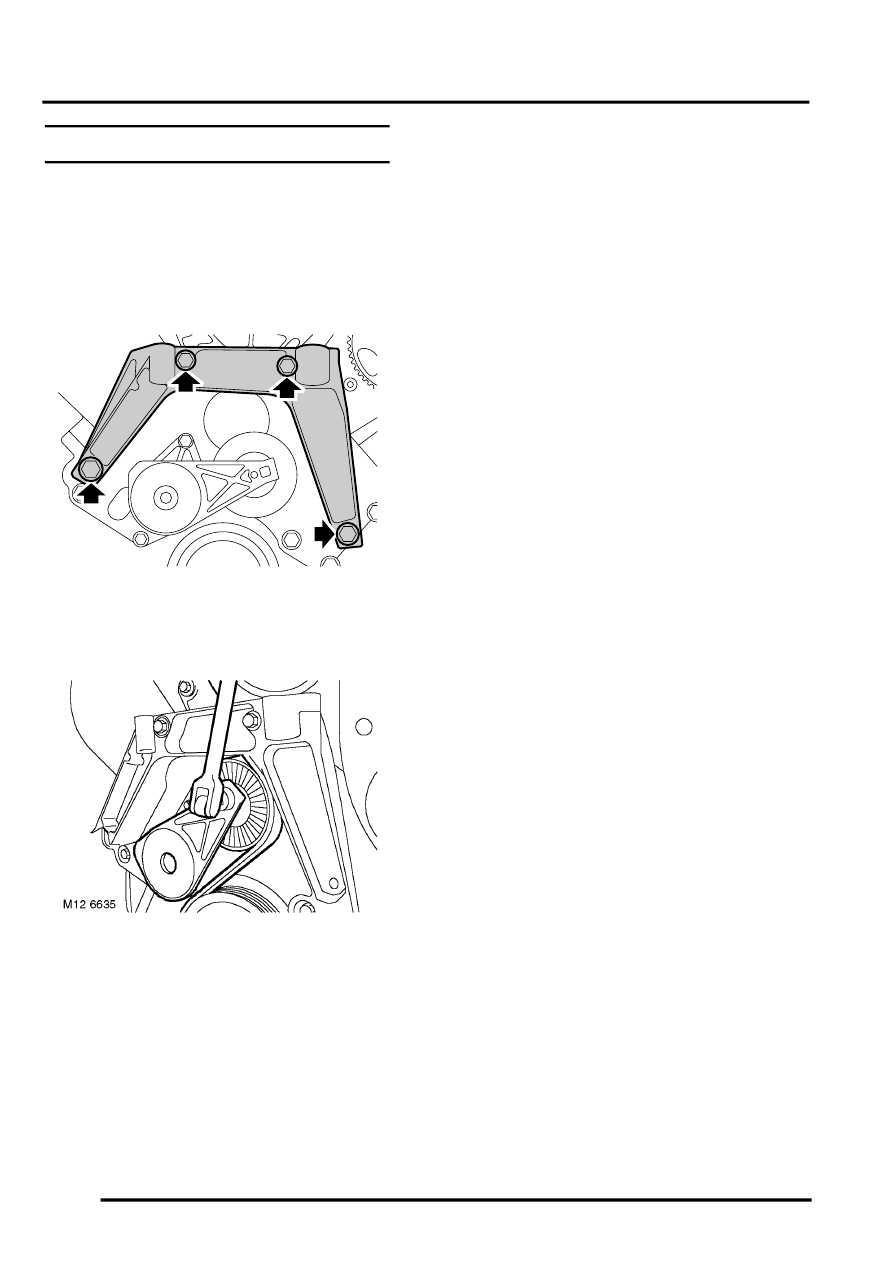

3. Remove 4 bolts securing engine mounting
bracket to engine front plate and remove
bracket.
4. Using a 3/8” square drive socket bar, raise
ancillary drive belt tensioner and release drive
belt from alternator pulley.
5. Release and remove ancillary drive belt from
remaining pulleys.
Refit
1. Clean pulley 'V's and tensioner pulley running
surface.
NOTE: Examine drive belt for signs of wear. A
drive belt with cracked ribs is acceptable. A
drive belt that has loose or missing parts of ribs
must be changed.
2. Fit new drive belt to crankshaft pulley.
3. Raise belt tensioner and connect drive belt to
steering pump, alternator and compressor
pulleys. Ensure drive belt is correctly located in
pulley grooves.
4. Position engine mounting front bracket to
engine front plate and tighten bolts to 45 Nm
(33 lbf.ft).
5. Fit top arm.
ENGINE - K SERIES KV6, REPAIRS,
Arm assembly - engine mounting RH.
6. Connect battery earth lead.
M86 5264
