Freelander Service Procedures
CHARGING AND STARTING
86-1-12 REPAIRS
12. Remove and discard tensioner arm seal.

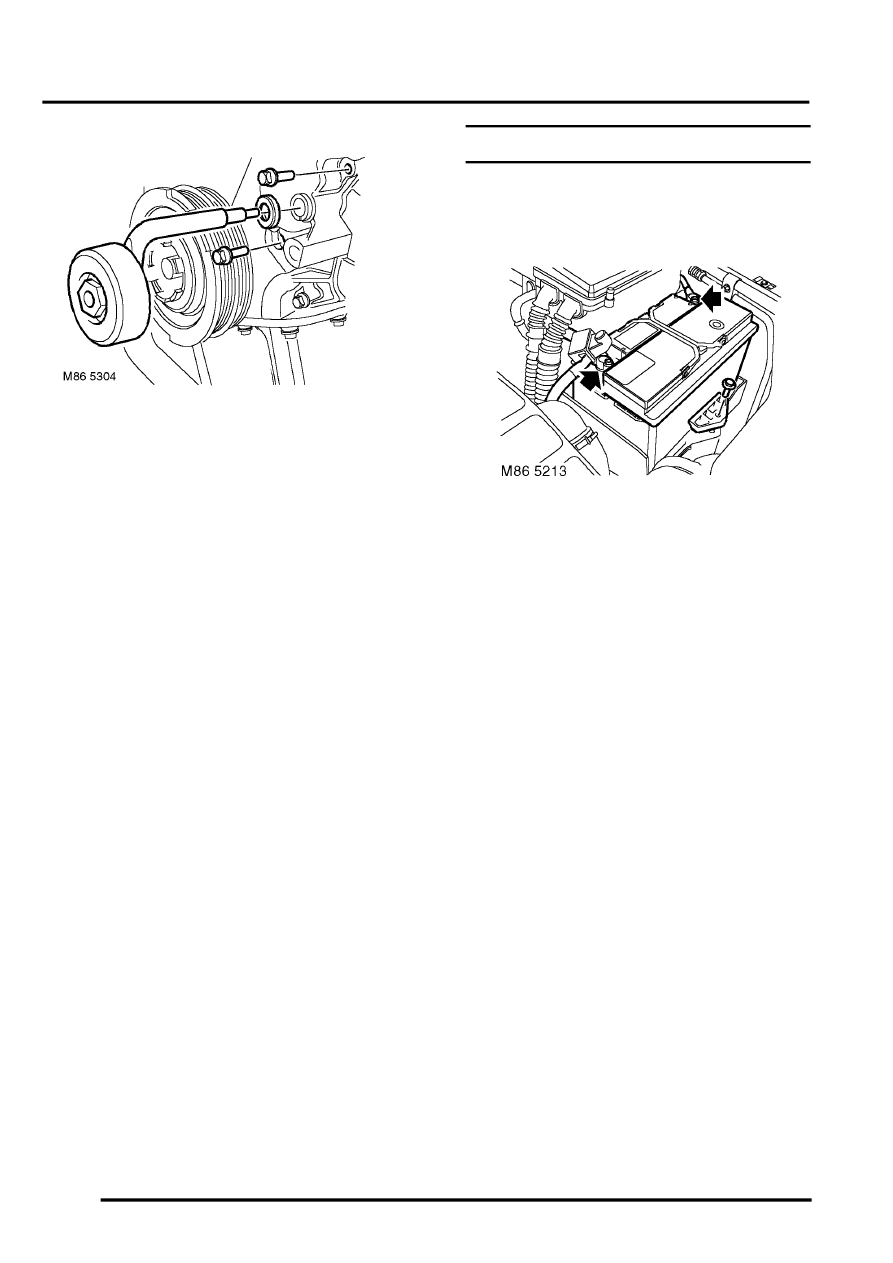

13. Remove 2 bolts from timing cover, securing
ancillary drive belt tensioner.
14. Remove tensioner.
Refit
1. Clean tensioner block and mounting.
2. Position tensioner block, temporarily fit
tensioner arm to align spring block with timing
cover. Fit bolts and tighten to 25 Nm (18 lbf.ft).
Remove tensioner arm.
3. Clean seal mounting for tensioner arm on
timing cover, fit new seal.
4. Fit ancillary drive belt tensioner arm to timing
cover, turn through 180
°
to align with tensioner
spring housing, push fully home. Fit and tighten
nut to 10 Nm (7.5 lbf.ft).
5. Fit alternator.
6. Fit idler pulley to mounting and tighten Allen
bolt to 25 Nm (18 lbf.ft).
7. Position dipstick tube to oil filter, fit bolt and
tighten to 10 Nm (7.5 lbf.ft).
8. Fit ancillary drive belt.
REPAIRS, Ancillary drive belt - Td4.
9. Fit hydramount.
10. Fit underbelly panel.
11. Connect battery earth lead.
Battery
$% 86.15.01
Remove
1. Disconnect both battery terminals, earth lead
first.
2. Remove bolt and battery clamp.
3. Remove battery.
Refit
1. Clean battery tray.
2. Fit battery and clamp, tighten bolt to 12 Nm (9
lbf.ft).
3. Apply petroleum jelly to both terminals, fit and
tighten terminal bolts negative lead last.
