Freelander Service Procedures
ENGINE - K SERIES KV6
12-3-10 REPAIRS
Pulley - crankshaft
$% 12.21.01
Remove
1. Remove underbelly panel.
2. Remove RH front road wheel.

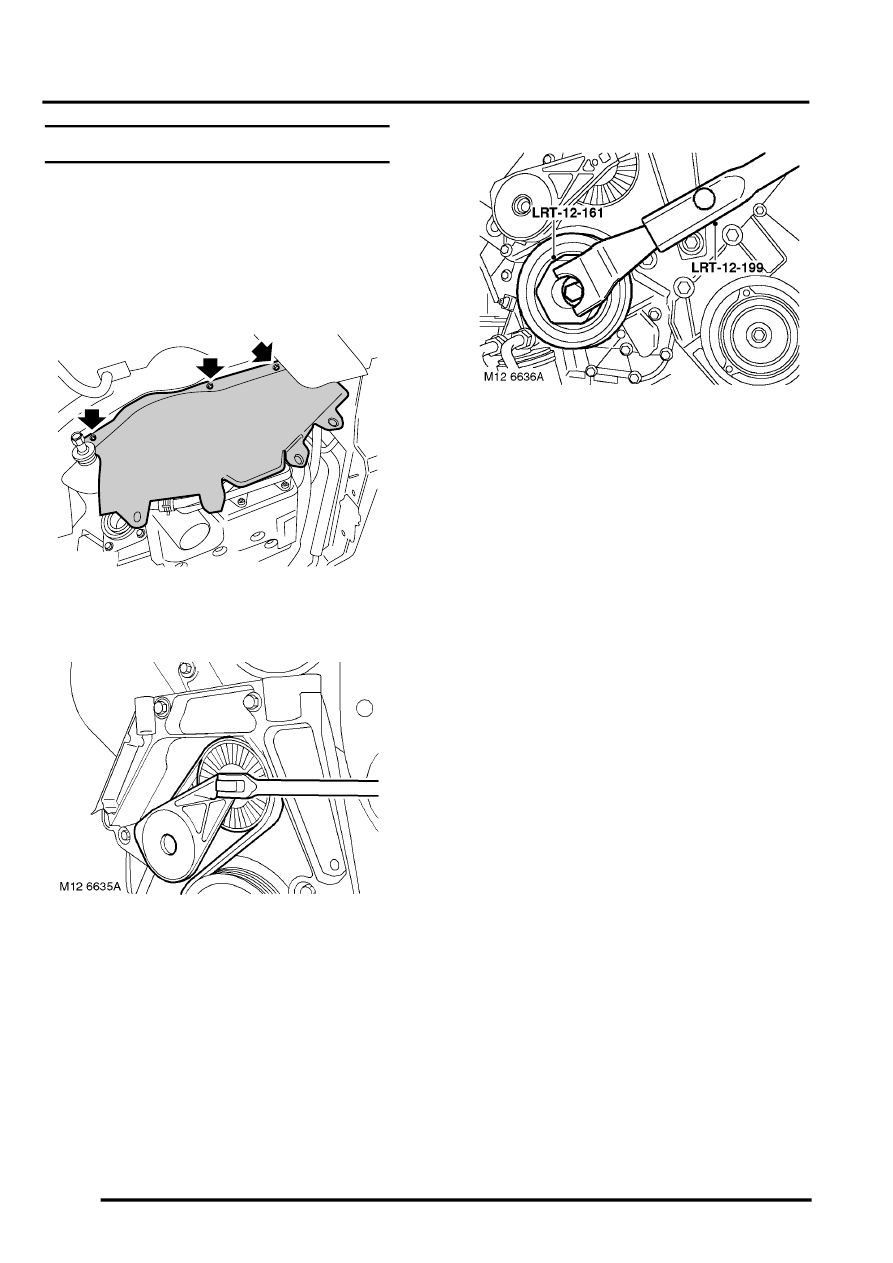

3. Remove 3 bolts securing RH splash shield to
body and remove shield.
4. Using a 3/8 square drive socket bar, raise
ancillary drive belt tensioner and release drive
belt from crankshaft pulley.
5. Assemble LRT-12-161 to LRT-12-199 and
secure with clamp bolt.
6. Insert LRT-12-161 with LRT-12-199 into
crankshaft pulley, loosen and remove pulley
bolt.
7. Remove tools from crankshaft pulley, remove
crankshaft pulley.
Refit
1. Clean crankshaft pulley and crankshaft gear
mating faces.
2. Fit crankshaft pulley to crankshaft gear and
ensure that the indent on pulley locates over
the lug on crankshaft gear.
3. Fit crankshaft pulley bolt and washer, position
LRT-12-161 with LRT-12-199 into crankshaft
pulley. Tighten pulley bolt to 160 Nm (118
lbf.ft).
4. Remove tools from crankshaft pulley.
5. Ensure drive belt is located on ancillary pulleys,
raise belt tensioner and fit drive belt to
crankshaft pulley.
6. Fit splash shield and secure with bolts.
7. Fit RH road wheel and tighten nuts to 115 Nm
(85 lbf.ft)
8. Fit underbelly panel.
M12 6614
