Camshaft rear oil seal
$% 12.13.42
Remove
1. Disconnect battery earth lead.
2. LH bank only: Remove LH rear camshaft
timing belt.
ENGINE - K SERIES KV6, REPAIRS,
Camshaft rear timing belt - LH cylinder
head.
3. RH bank only:Remove RH rear camshaft
timing belt.
ENGINE - K SERIES KV6, REPAIRS,
Camshaft rear timing belt - RH cylinder
head.

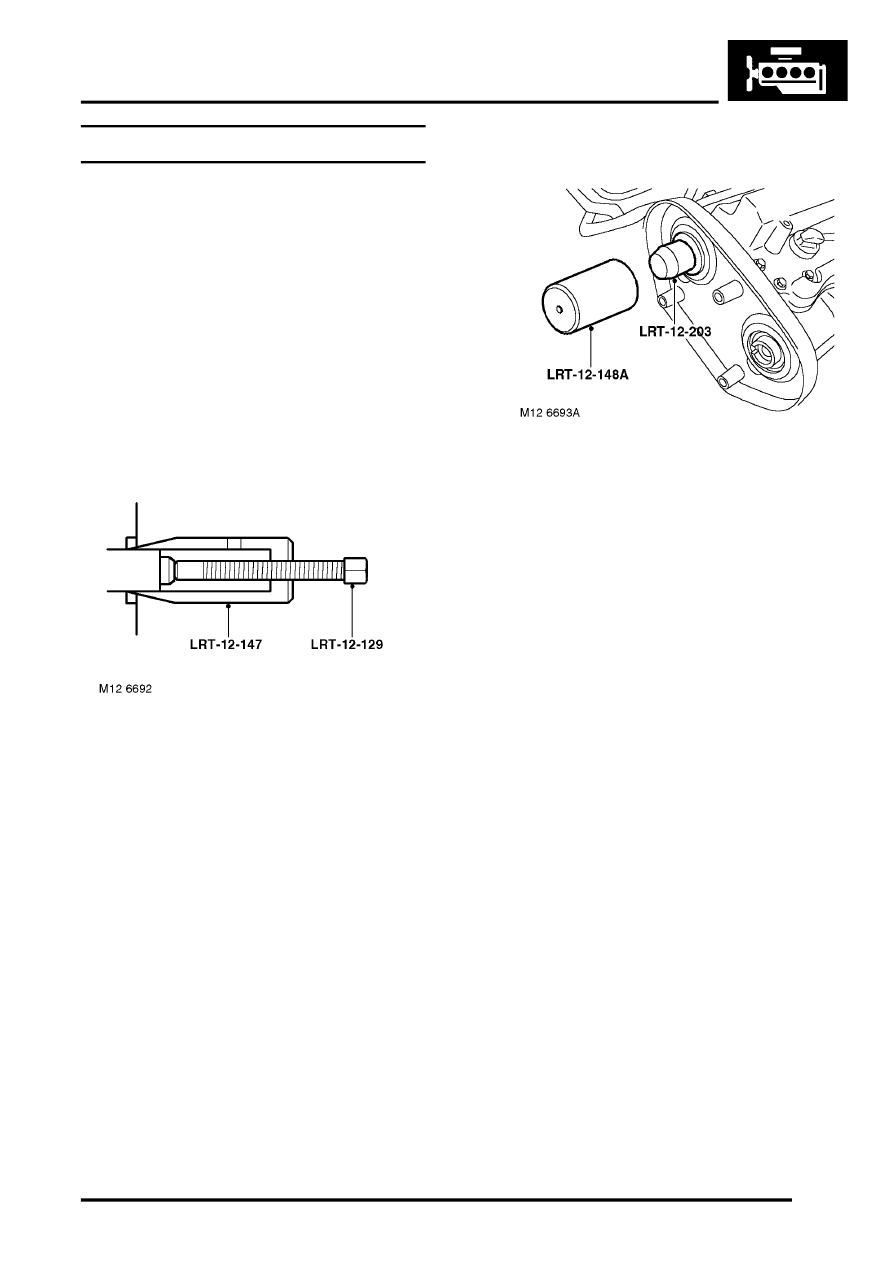

4. Remove camshaft rear oil seal using LRT-12-
147 and the centre bolt from LRT-12-129.
5. Remove and discard oil seal from LRT-12-147.
Refit
1. Clean oil seal recess and camshaft.
2. Ensure oil seal protector sleeve LRT-12-203, is
clean. Fit sleeve to camshaft.
3. Position oil seal and using LRT-12-148A, drift
seal into position.
CAUTION: Do not use tool LRT-12-148 for
fitting seal.
4. Remove seal protector, LRT-12-203, from end
of camshaft.
5. LH bank only: Fit LH rear camshaft timing belt.
ENGINE - K SERIES KV6, REPAIRS,
Camshaft rear timing belt - LH cylinder
head.
6. RH bank only: Fit RH rear camshaft timing
ENGINE - K SERIES KV6, REPAIRS,
Camshaft rear timing belt - RH cylinder
head.
7. Connect battery earth lead.
8. Top-up engine oil.
