Freelander Service Procedures
ENGINE - K SERIES KV6
12-3-66 REPAIRS
40. Fit bolt and nut and bolt securing alternator to
front mounting plate and tighten to 45 Nm (33
lbf.ft).
41. Connect alternator multiplug.
42. Connect battery lead to alternator, fit and
tighten nut to 8 Nm (6 lbf.ft), fit terminal cover.
43. Position PAS pump to front mounting plate, fit
and tighten bolts to 25 Nm (18 lbf.ft).
44. Position PAS pipe to engine front mounting
plate, fit and tighten bolt to 25 Nm (18 lbf.ft).
45. Clean PAS pump pulley mating faces.
46. Position PAS pump pulley, fit and tighten Torx
screws to 9 Nm (7 lbf.ft).
47. Position lower engine steady to sump
mounting, fit and tighten bolt to 100 Nm (74
lbf.ft).
48. Tighten bolt securing lower engine steady to
subframe to 100 Nm (74 lbf.ft).
49. Clean LH rear timing belt cover.
50. Position LH rear timing belt cover, fit and
tighten bolts to 4 Nm (3 lbf.ft).
51. Clean RH rear timing belt cover.
52. position RH rear timing belt cover, fit bolts and
tighten to 4 Nm (3 lbf.ft).
53. Position heat shield, fit bolts and tighten M6 bolt
to 9 Nm (7 lbf.ft) and M8 bolt to 25 Nm (18 lbf.ft).
54. Fit inlet manifold chamber.
- K SERIES KV6, REPAIRS, Seals - inlet
manifold chamber - up to 03MY.
- K SERIES KV6, REPAIRS, Seals - inlet
manifold chamber - from 03MY.
55. Fit RH road wheel and tighten nuts to 115 Nm
(85 lbf.ft).
56. Fit ancillary drive belt.
REPAIRS, Ancillary drive belt - KV6.
Camshaft timing belt cover - RH front
$% 12.65.39
Remove
1. Disconnect battery earth lead.
2. Remove ancillary drive belt.
REPAIRS, Ancillary drive belt - KV6.

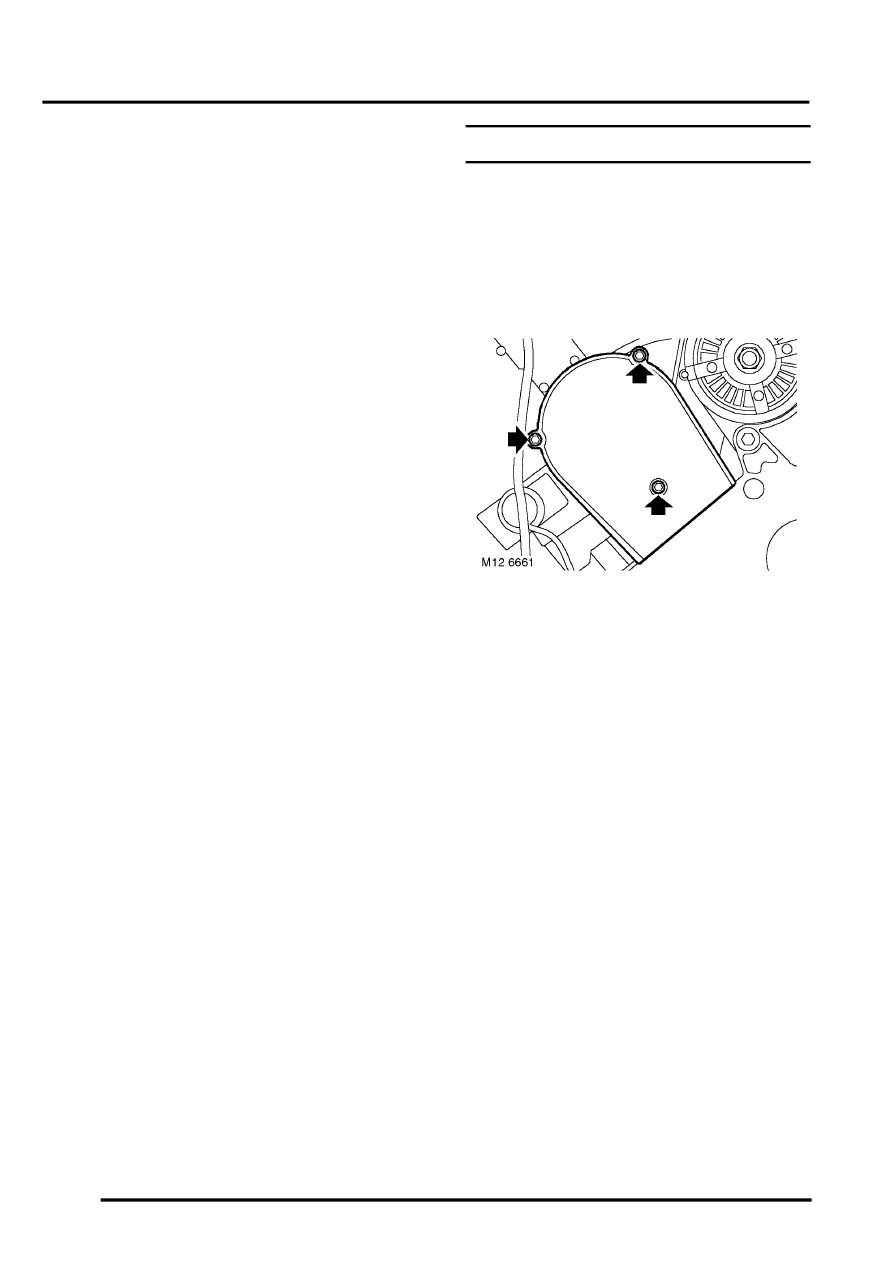

3. Remove 3 bolts securing camshaft timing belt
RH front cover and remove cover.
Refit
1. Clean RH front timing belt cover.
2. Position RH front timing belt cover, fit and
tighten bolts to 4 Nm (3 lbf.ft).
3. Fit ancillary drive belt.
REPAIRS, Ancillary drive belt - KV6.
4. Connect battery earth lead.
