Freelander Service Procedures
ENGINE - K SERIES KV6
12-3-8
REPAIRS
Inlet camshaft front oil seal
$% 12.13.40
Remove
1. Remove camshaft timing belt.
ENGINE - K SERIES KV6, REPAIRS,

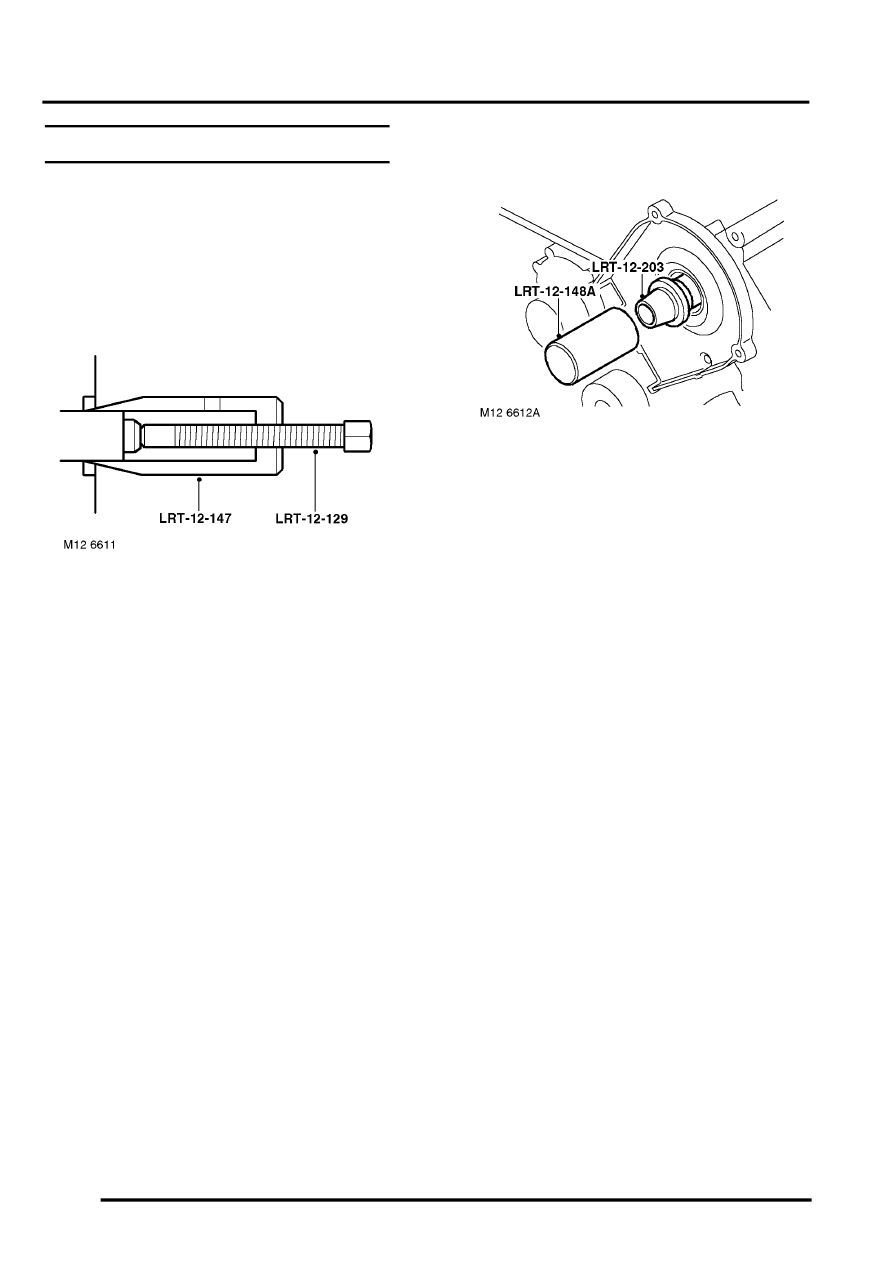

2. Remove camshaft oil seal using LRT- 12-147
and centre bolt LRT-12-129.
3. Remove and discard oil seal from LRT-12-147.
Refit
1. Clean oil seal recess and camshaft.
2. Ensure oil seal protector sleeve LRT-12-203, is
clean. Fit sleeve to camshaft.
3. Position oil seal and using LRT-12-148A, drift
seal into position.
CAUTION: Oil seal must be fitted dry. Do not
use tool LRT-12-148 for fitting seal.
4. Remove seal protector, LRT-12-203, from end
of camshaft.
5. Fit camshaft timing belt.
ENGINE - K SERIES KV6, REPAIRS,
6. Top-up engine oil.
