ENGINE - K SERIES KV6

REPAIRS 12-3-53

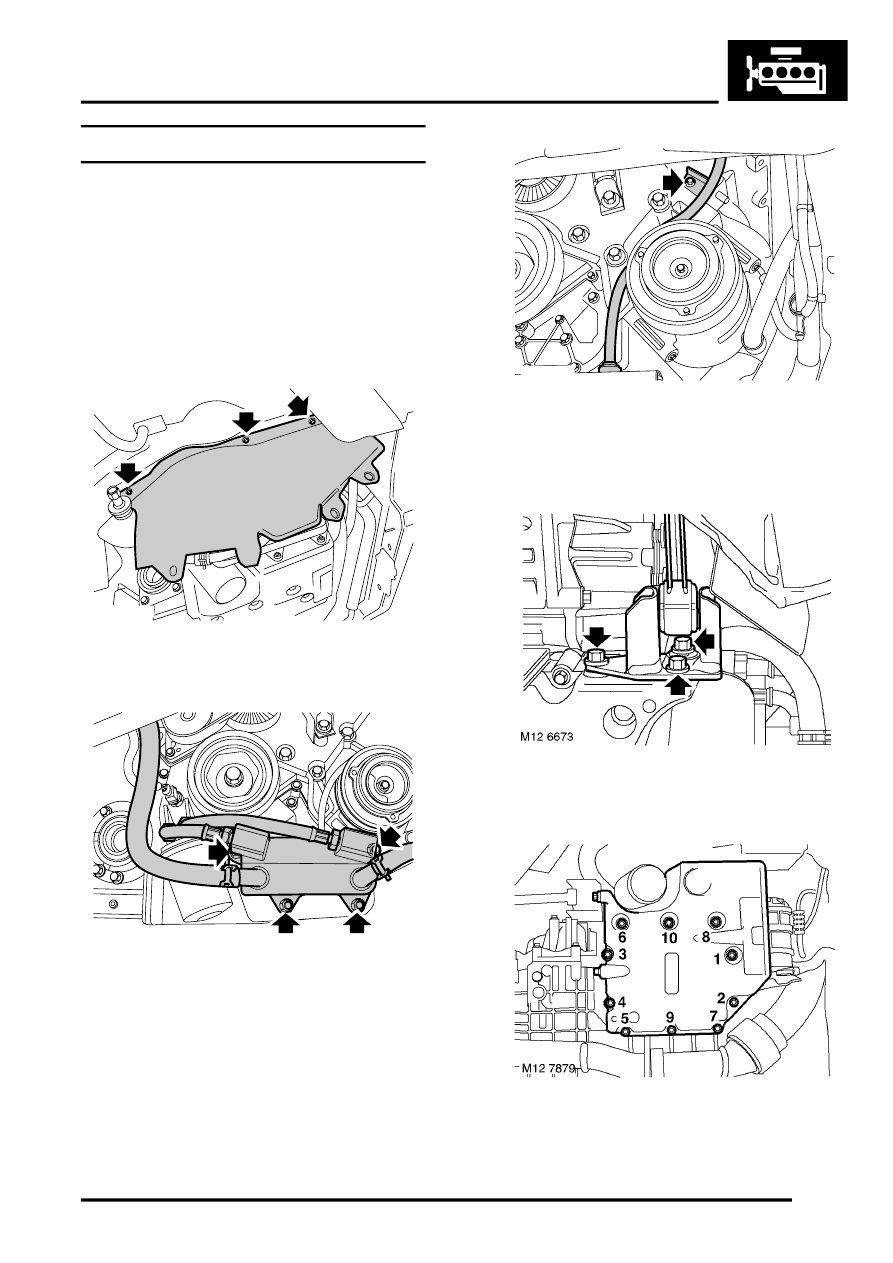

Sump - reseal

$% 12.60.38

Remove

1. Disconnect battery earth lead.
2. Remove engine acoustic cover.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Cover - engine acoustic.

3. Drain engine oil.



 +

 MAINTENANCE, MAINTENANCE,

Engine Oil and Filter – KV6.

4. Remove 3 bolts securing RH splash shield to

body and remove shield.

5. Remove 4 nuts securing engine oil cooler to

mounting bracket and position oil cooler aside.

6. Remove bolt securing dipstick tube to cylinder

block.

7. Depress and hold down dipstick collar, remove

dipstick tube from sump.

8. Remove 3 bolts securing IRD support bracket

to sump.

9. Using sequence shown and noting their fitted

position, remove 10 bolts securing sump to
lower crankcase.

M12 6614

M12 7916

M12 6672
