Freelander Service Procedures
ENGINE - K SERIES KV6
12-3-52 REPAIRS

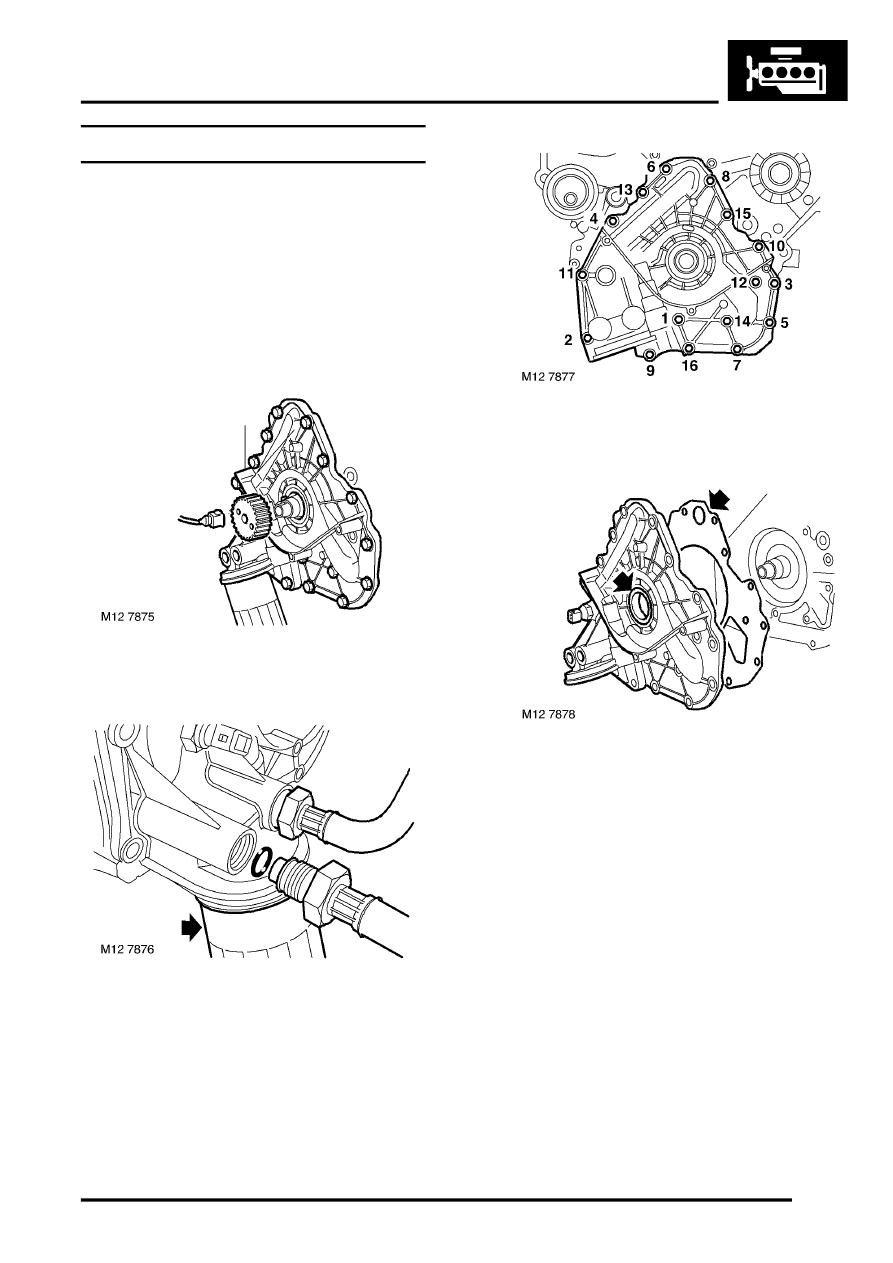

Refit
1. Clean oil pump and mating face on cylinder
block ensure bolt holes are clean and dry.
2. Clean oil seal recess in oil pump and running
surface on crankshaft.
3. Fit new oil pump gasket, dry, to cylinder block.
4. Fit oil seal guide, from seal kit, over end of
crankshaft.

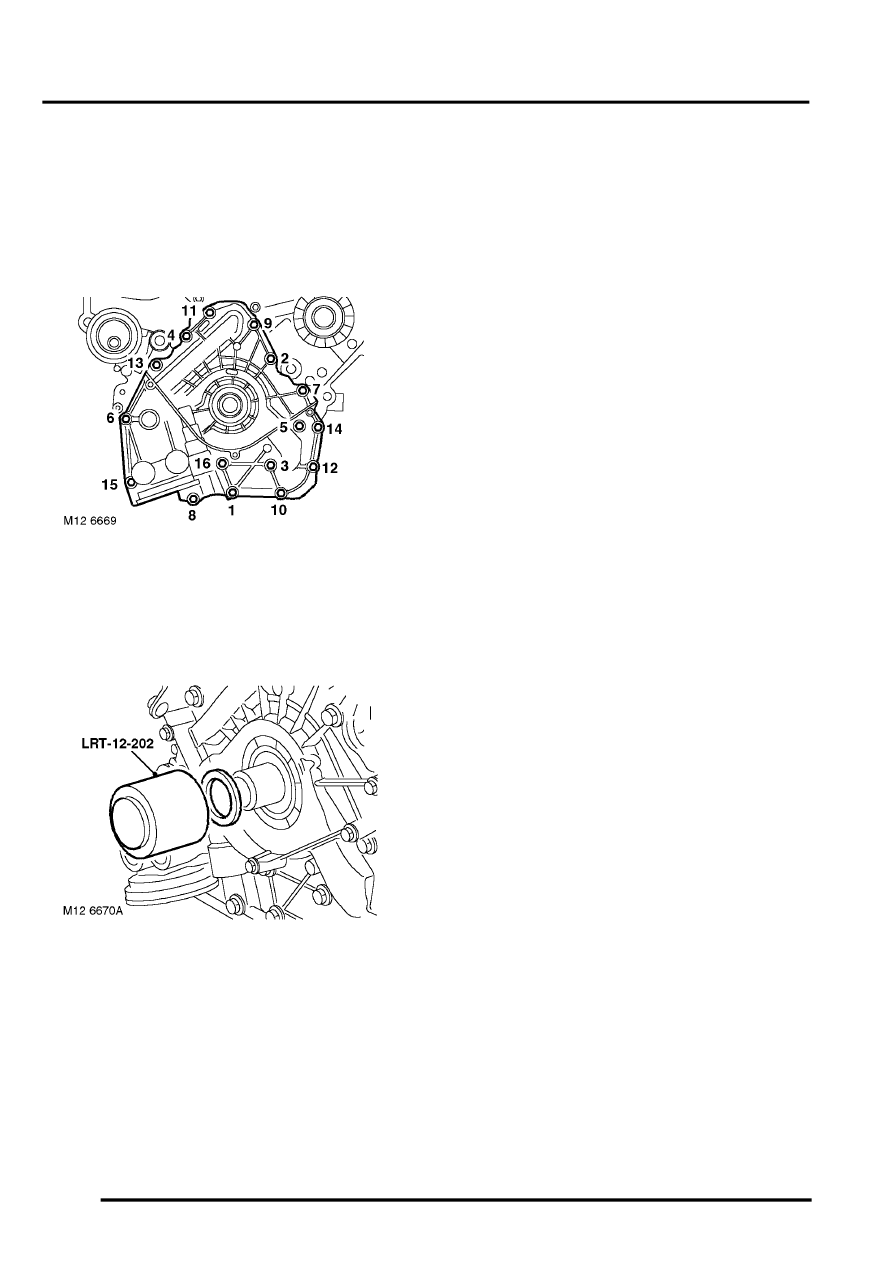

5. Position oil pump, aligning flats on oil pump
drive to flats on crankshaft. Fit new Patchlok
bolts and tighten progressively in sequence
shown to:
l
Stage 1 - 5 Nm (4 lbf.ft)
l
Stage 2 - 9 Nm (7 lbf.ft)
6. Position new seal on crankshaft up against oil
pump housing. Drift seal into place using tool
LRT-12-202.
CAUTION: Oil seal must be fitted dry.
7. Remove oil seal guide from crankshaft.
8. Connect multiplug to oil pressure switch.
9. Fill canister of replacement oil filter with clean
engine oil.
10. Lubricate oil filter sealing ring with clean engine
oil.
11. Fit oil filter and tighten by hand until it seats
then tighten a further half turn.
12. Lubricate new 'O' rings with clean engine oil
and fit to oil cooler pipe unions.
13. Connect oil cooler pipes to oil filter housing and
tighten unions to 26 Nm (19 lbf.ft).
14. Clean crankshaft gear and wipe end of
crankshaft.
15. Fit crankshaft gear.
16. Fit camshaft timing belt.
ENGINE - K SERIES KV6, REPAIRS,
17. Fill engine with oil.
18. Connect battery earth lead.
