Freelander Service Procedures
ENGINE - K SERIES KV6
REPAIRS 12-3-21
Refit
1. Clean mating surfaces of camshaft cover and
carrier.
2. Clean inside of camshaft cover. If necessary,
wash oil separator elements in solvent and
blow dry.
3. Position new gasket to camshaft carrier with
arrows on gasket pointing towards inlet
manifold.

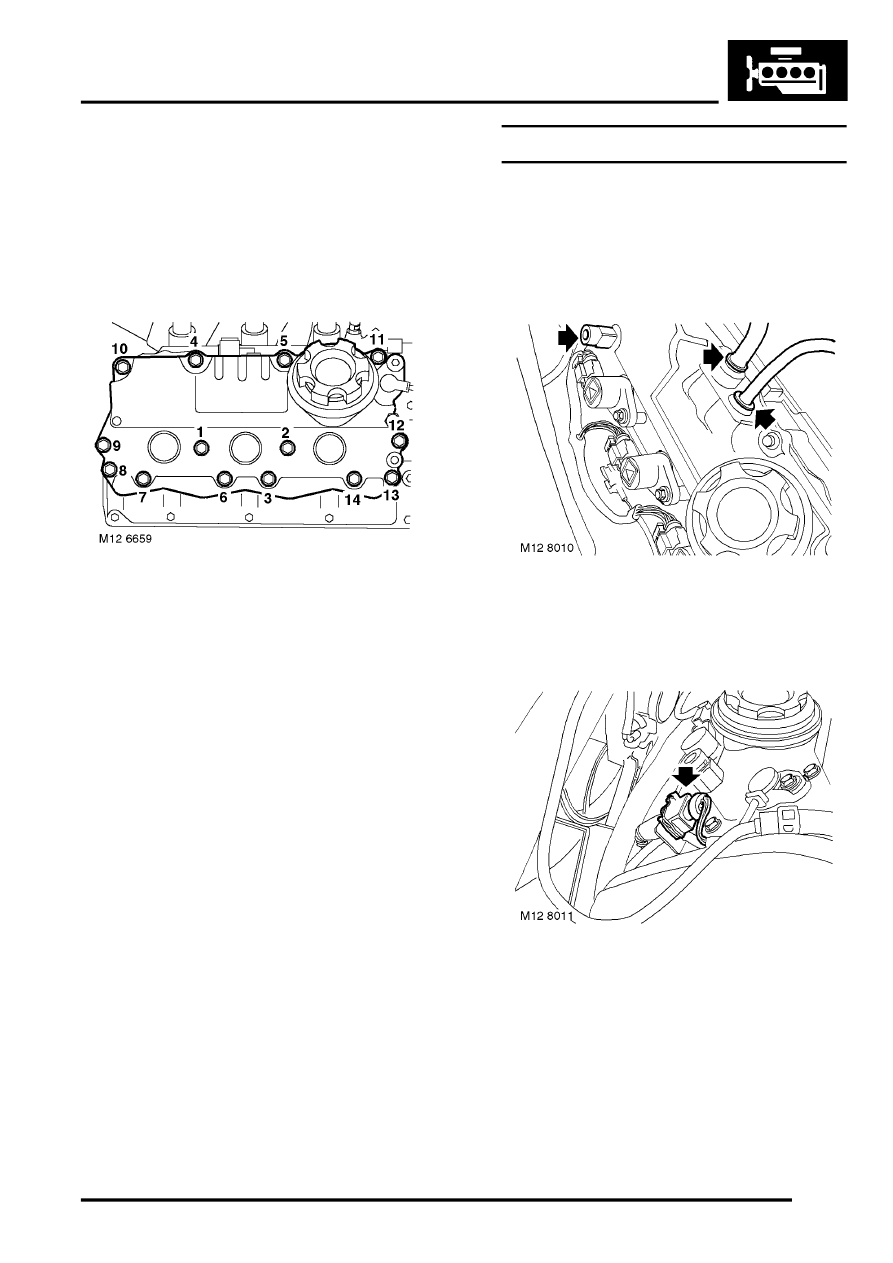

4. Position camshaft cover, fit and tighten bolts
progressively in the sequence shown to 9 Nm
(7 lbf.ft).
5. Position multiplug bracket, fit and tighten bolt to
9 Nm (7 lbf.ft).
6. Secure male end of CMP sensor multiplug to
bracket and connect multiplug.
7. Connect ht leads to spark plugs in their correct
fitted order.
8. Position ht lead guide bracket, fit and tighten
special bolt.
9. Connect breather hoses to LH camshaft cover.
10. Fit engine acoustic cover.
ENGINE - K SERIES KV6, REPAIRS,
11. Check engine oil, top-up if necessary.
Camshaft cover gasket - LH - from 03MY
$% 12.29.40
Remove
1. Remove the engine acoustic cover.
ENGINE - K SERIES KV6, REPAIRS,
2. Depress locking collars and release 2 breather
hoses from LH camshaft cover.
3. Remove acoustic cover retainer and remove
plug top coil harness clip.
4. Disconnect CMP sensor multiplug and release
male end of multiplug from bracket.
