Crankshaft front oil seal
$% 12.21.14
Remove
1. Disconnect battery earth lead.
2. Remove camshaft timing belt.
ENGINE - K SERIES KV6, REPAIRS,

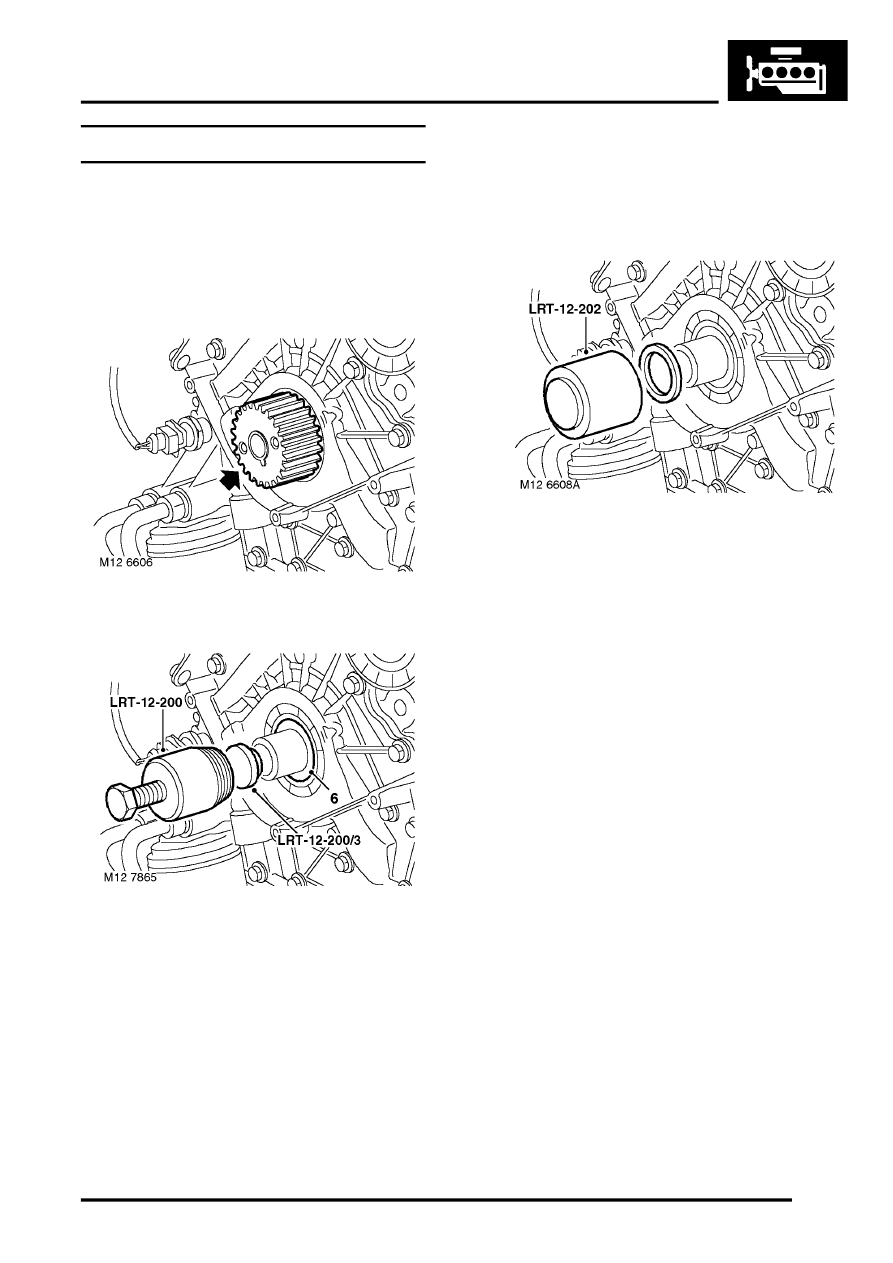

3. Remove crankshaft gear.
4. Fit thrust button, LRT-12-200/3 to end of
crankshaft.
5. Screw LRT-12-200 into crankshaft front oil
seal.
6. Tighten centre bolt of LRT-12-200 to remove oil
seal.
7. Remove and discard oil seal from special tool.
8. Remove thrust button from crankshaft.
Refit
1. Clean oil seal recess in oil pump and running
surface on crankshaft, ensure bolt holes are
clean and dry.
2. Fit oil seal guide, from seal kit, over end of
crankshaft.
3. Position new seal on crankshaft up against oil
pump housing. Drift seal into place using tool
LRT-12-202.
4. Remove LRT-12-202 and oil seal guide from
crankshaft.
5. Fit gear to crankshaft.
6. Fit camshaft timing belt.
ENGINE - K SERIES KV6, REPAIRS,
7. Connect battery earth lead.
8. Top-up engine oil.
