Freelander Service Procedures
ENGINE - K SERIES KV6
12-3-12 REPAIRS
Crankshaft rear oil seal
$% 12.21.20

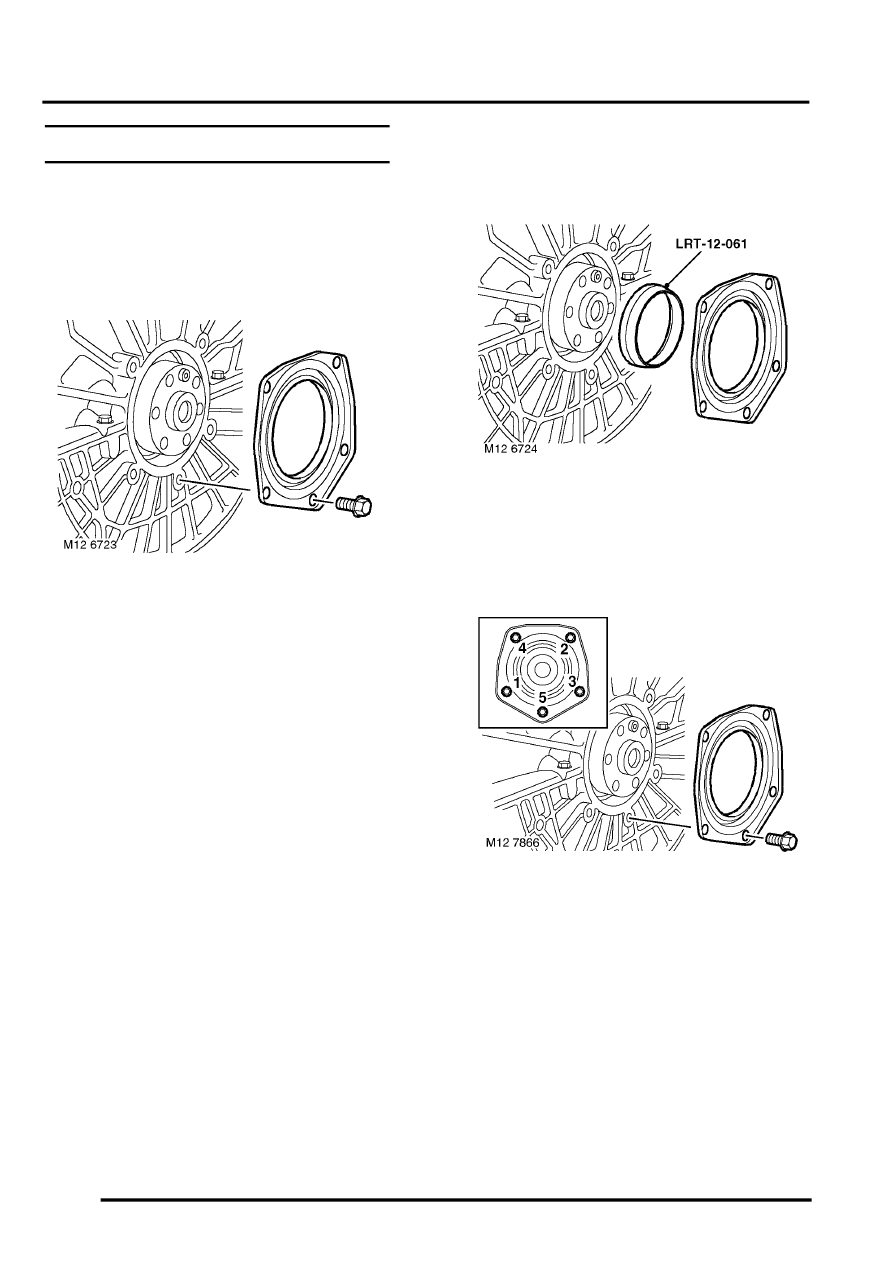

Remove
1. Remove torque converter drive plate.
ENGINE - K SERIES KV6, REPAIRS,
2. Remove and discard 5 bolts securing
crankshaft rear oil seal to cylinder block.
3. Remove and discard crankshaft rear oil seal.
Refit
1. Clean cylinder block face and oil seal running
surface on crankshaft; ensure bolt holes are
clean and dry.
2. Position oil seal protector, LRT-12-061 to
crankshaft.
3. Position oil seal to crankshaft.
CAUTION: Oil seal must be fitted dry.
4. Fit new Patchlok bolts securing oil seal to
cylinder block and using sequence shown,
tighten to 8 Nm (6 lbf.ft).
5. Remove oil seal protector.
6. Fit torque converter drive plate.
ENGINE - K SERIES KV6, REPAIRS,
7. Check engine oil level, top-up if necessary.
