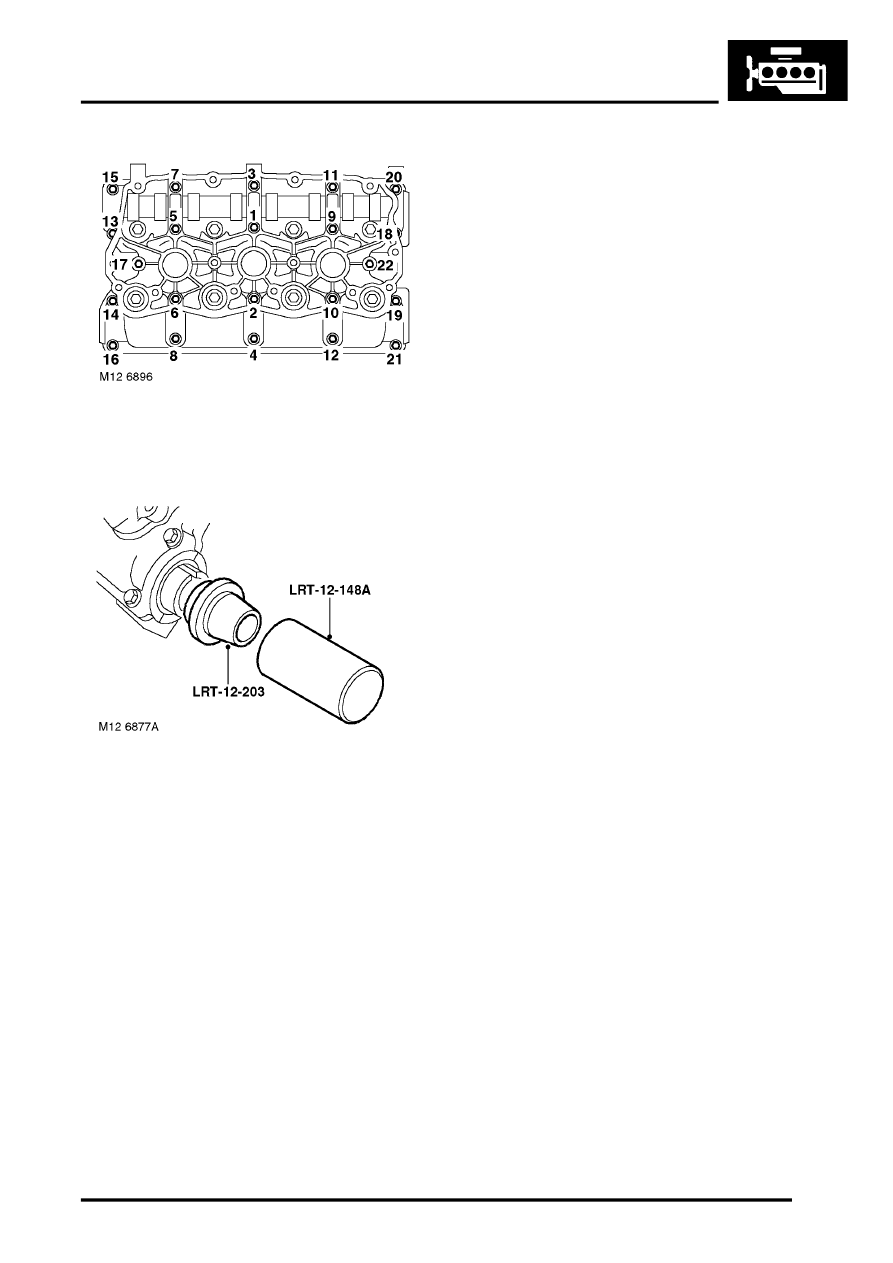

6. Position camshaft carrier, fit and progressively
tighten bolts in the sequence shown to 10 Nm
(7.5 lbf.ft).
7. Noting that the front camshaft oil seals are
black in colour and the rear oil seals are red, fit
new camshaft oil seals using LRT-12-203 and
LRT-12-148A
CAUTION: Oil seals must be fitted dry. Do
not use tool LRT-12-148 for fitting seals.
8. Clean camshaft timing cover backplate bolts
and apply sealant, Part No. STC 50552 to first
3 threads.
9. Fit camshaft cover backplates fit and tighten
bolts to 9 Nm (7 lbf.ft).
10. Fit RH camshaft cover gasket.
ENGINE - K SERIES KV6, REPAIRS,
11. Fit camshaft timing belt.
ENGINE - K SERIES KV6, REPAIRS,
12. Fit RH rear camshaft timing belt.
ENGINE - K SERIES KV6, REPAIRS,
Camshaft rear timing belt - RH cylinder
head.
13. Top-up engine oil.
14. Connect battery earth lead.
