PANEL REPAIRS
REPAIRS 77-2-57
Repair

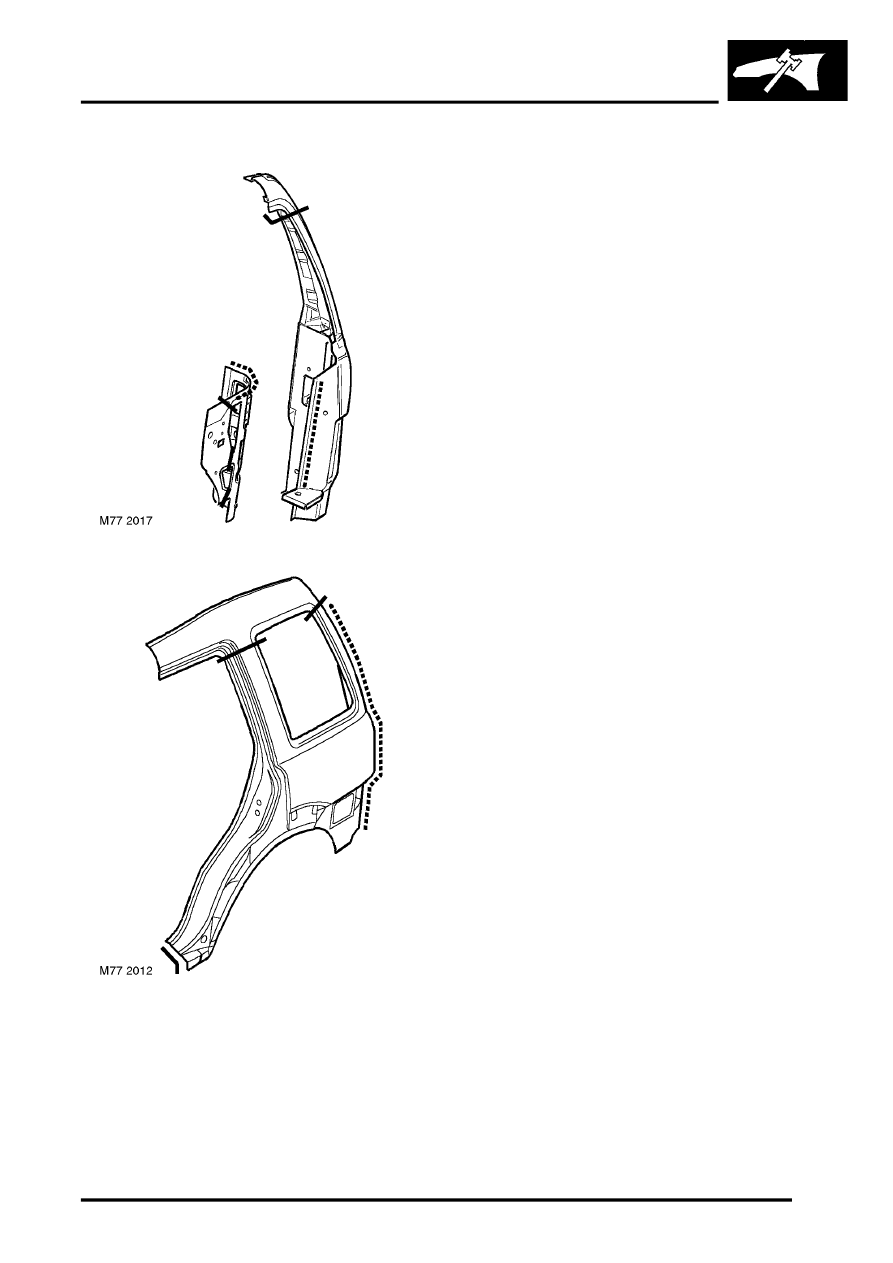

1. Remove existing panel(s), prepare panel joint
faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.
Refit
1. LH side: Fit tail door striker.
2. RH side: Fit fuel tank.
PETROL, REPAIRS, Tank - Non NAS.
3. RH side: Fit fuel filler neck.
4. RH side: Fit tail door.
assembly - remove for access & refit.
5. Secure vehicle harness to 'E' post.
6. Fit rear body side glass.
SCREENS, REPAIRS, Glass - body
7. Fit loadspace carpet.
REPAIRS, Carpet - luggage compartment.
8. Fit rear quarter upper casing.
REPAIRS, Trim casing - rear quarter - upper
- 5 door.
9. Fit rear quarter lower casing.
REPAIRS, Trim casing - rear quarter - lower
- 5 door.
10. Fit tail door aperture seal.
11. Fit tail door glass side finisher.
DOORS, REPAIRS, Finisher - rear
12. Fit tail door glass upper finisher.
13. Fit roof panel finisher.
DOORS, REPAIRS, Finisher - rear
14. Fit tail lamp.
15. Fit rear wheel arch liner.
16. Fit rear bumper valance.
Bumper valance - rear - up to 04MY.
17. Fit road wheel(s) and tighten nuts to 115 Nm
(85 lbf.ft).
18. Connect all ECUs.
19. Connect alternator.
20. Connect battery earth lead.
