Freelander Service Procedures
STEERING
57-20
REPAIRS

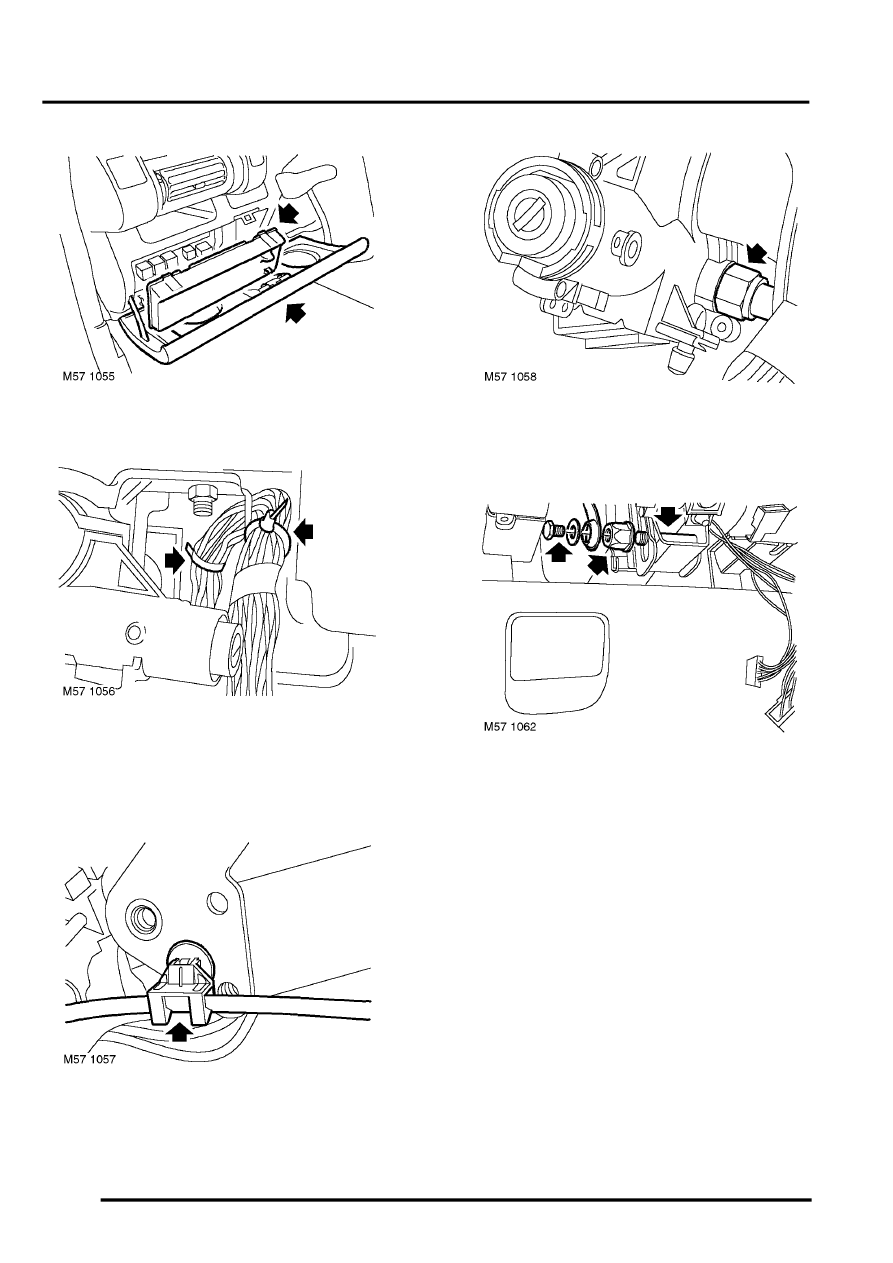

5. Lower glove lid and remove fuse box cover.
6. Carefully cut 2 harness clips from LH side of
column and release harness.
7. Release 2 harness clips from RH side of
column and release harness.
8. Models with automatic transmission:
Release key interlock cable from column clip.
9. Models with automatic transmission:
Loosen union and release key interlock cable
from column lock.
10. Models with automatic transmission:
Remove bolt securing steering column height
adjuster lever and remove lever.
11. Models with automatic transmission:
Remove nut securing height adjuster clamp
bolt and remove bolt.
12. Models with automatic transmission:
Release key interlock cable from steering
column.
13. Models with automatic transmission: Fit
clamp bolt and nut to retain support bracket in
position.
