Freelander Service Procedures
STEERING
REPAIRS
57-21

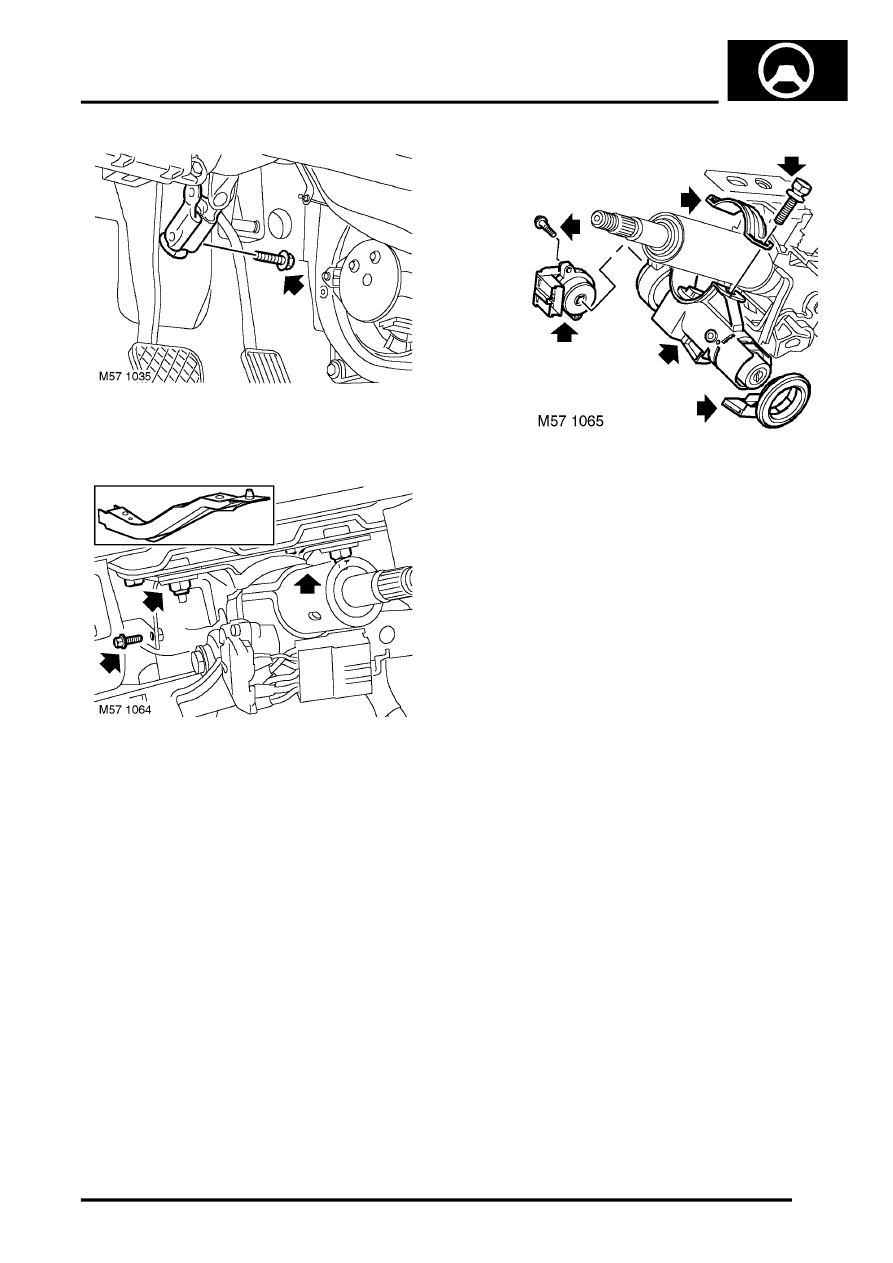

14. Remove pinch bolt securing steering column to
PAS rack pinion.
15. Remove bolt securing steering column to
fusebox support bracket.
16. Remove 2 nuts and 2 bolts securing steering
column to fascia support rail.
17. Collect snubber.
18. Release steering column from support bracket
and PAS rack pinion.
19. Remove steering column assembly.
20. Remove 2 cable ties from steering column.
21. Remove key interlock cable clip.
22. Remove 2 screws securing ignition switch and
remove ignition switch.
23. Remove passive coil.
24. Position steering column assembly in a vice.
25. Centre punch or drill out steering lock shear
bolts.
CAUTION: If steering column is to be re-
used, take care not to deform or damage
column in vice.
26. Remove steering column lock.
CAUTION: Take care not to damage steering
lock body if the lock is to be refitted.
