Drain tube - sun roof - rear - 5 door

DRAIN TUBE - SUN ROOF - REAR - 5 DOOR

Service repair no - 76.84.21

Remove

1. Remove headlining. See Interior trim components.

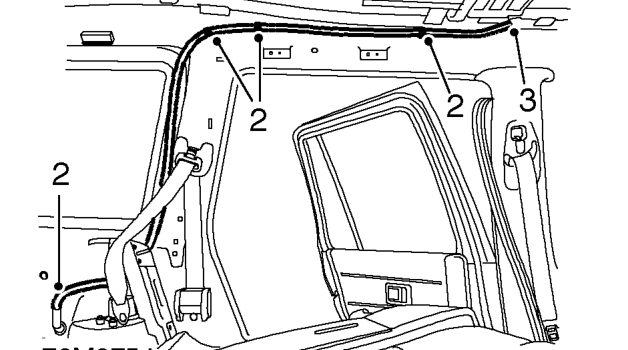

2. Release drain tube from wheel arch grommet and 3 securing clips.
3. Disconnect drain tube from sun roof and discard cable tie.
4. Remove drain tube.

Refit

1. Position NEW drain tube.
2. Connect drain tube to sun roof and secure with NEW cable tie.
3. Connect drain tube to wheel arch grommet and secure in clips.
4. Secure wheel arch grommet.
5. Fit headlining. See Interior trim components.

FINISHER - SUN ROOF FLANGE TO HEADLINING

Service repair no - 76.84.25

Remove

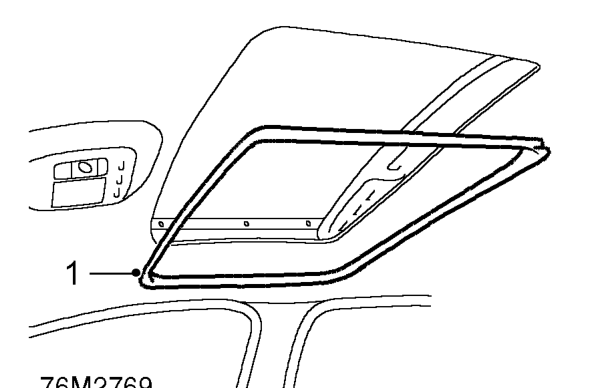

1. Release sun roof surround finisher from sunroof aperture and remove finisher.

Refit

1. Position sunroof surround finisher and secure in position ensure locating lug is in position at the front of finisher.
