Seal - sun roof tray

SEAL - SUN ROOF TRAY

Service repair no - 76.83.61

Remove

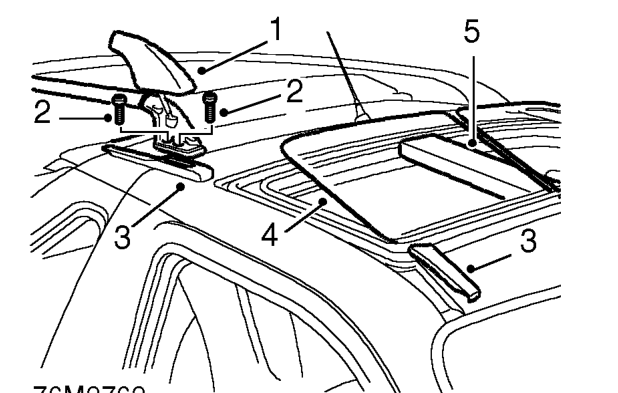

1. Remove side rail front end covers.
2. Unscrew 4 Torx bolts securing front of side rails and side rails.
3. Remove front and rear roof finishers.
4. Remove roof glass.
5. Remove ’T’ bar.

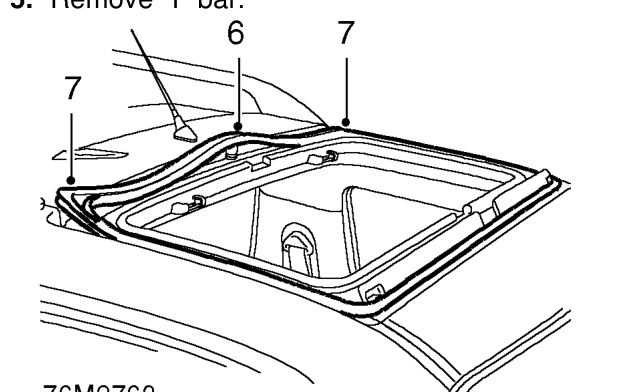

6. Release seal from inner part of tray.
7. Release seal from corners of tray and ease from between roof and tray.
8. Remove tray seal.

Refit

1. Position seal to roof.

CAUTION: Do not use sharp tools to locate seal

2. Locate seal to corners of tray and fit between roof and tray.
3. Fit seal to inner part of tray.
4. Fit ’T’ bar.
5. Fit roof glass.
6. Fit roof finishers.
7. Ensure gaskets are in position on side rails. Tighten Torx bolts to 22 Nm. to secure side rails.
8. Fit side rail end covers.
