Wind deflector - sun roof - 5 door

WIND DEFLECTOR - SUN ROOF - 5 DOOR

Service repair no - 76.84.28

Remove

1. Remove sun roof. See this section.

2. Carefully release wind deflector retaining pegs from roof.
3. Release wind deflector from lifting assemblies.
4. Remove wind deflector.

Refit

1. Position wind deflector to lifting assemblies and secure in position.
2. Carefully locate retaining pegs under roof.
3. Fit sun roof. See this section.

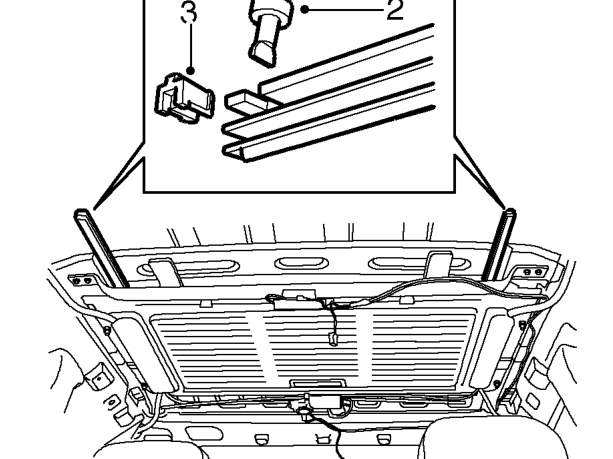

BLIND - SUN ROOF - 5 DOOR

Service repair no - 76.84.30

Remove

1. Remove headlining. See Interior trim components.

2. Remove 2 blind stops.
3. Remove 2 rubber buffers.
4. Slide blind to the rear of sun roof and remove from guides.

Refit

1. Lubricate guides with isoflex grease.
2. Fit blind to guides and slide into position.
3. Fit blind stops and rubber buffers.
4. Fit headlining. See Interior trim components.
