SUN ROOF ASSEMBLY - 3 DOOR

Service repair no - 76.83.01

Remove

WARNING: Wear protective gloves when handling solvents and primers.

WARNING: Wear suitable eye protection when cutting out sun roof.

  1. Remove headlining. See Interior trim components.

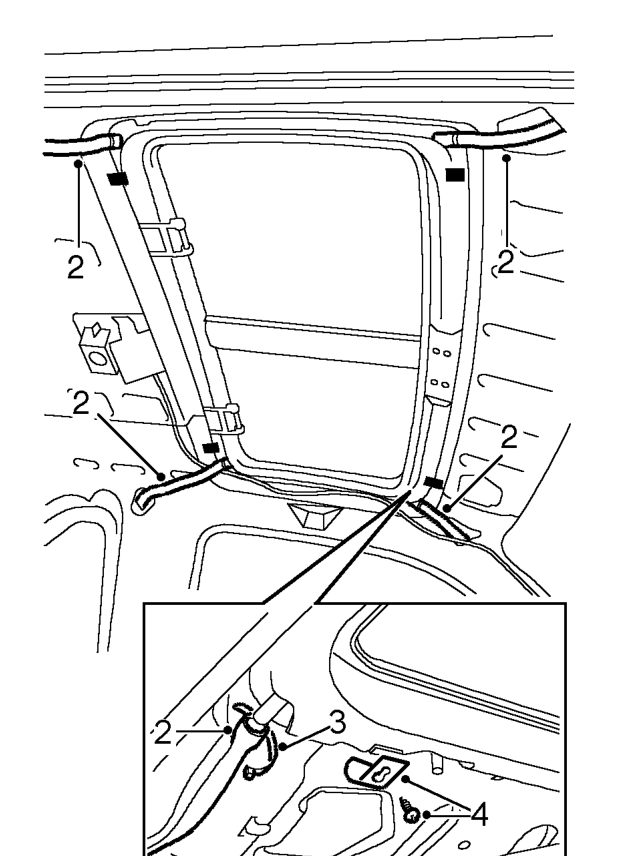

Sun roof assembly - 3 door – Remove headlining. See Interior trim components.
  1. Disconnect drain tubes from sun roof.
  2. Remove and discard cable ties.
  3. Loosen 4 Torx screws securing clamping plates and remove plates.

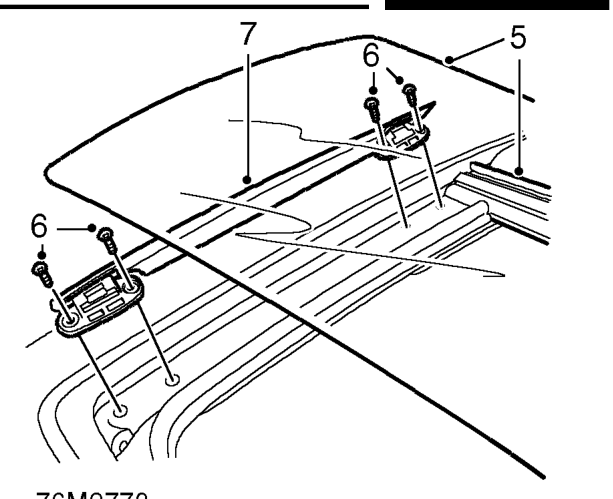

Sun roof assembly - 3 door – Loosen 4 Torx screws securing clamping plates and remove plates.
  1. Remove glass panels and ’T’ bar.
  2. Remove 8 screws securing wind deflectors.
  3. Remove wind deflectors.
