Pre-delivery inspection (PDI) (page 3 of 3)

PRE-DELIVERY INSPECTION

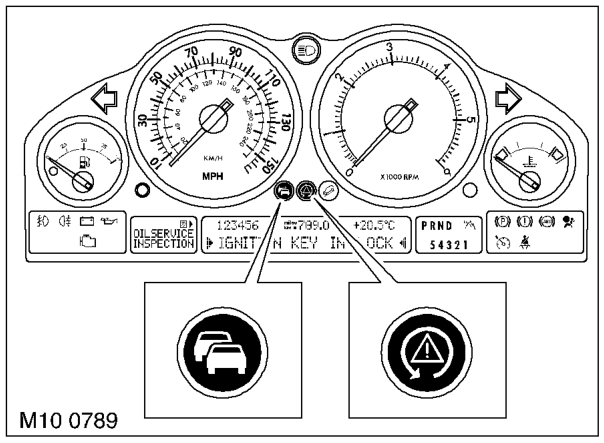

15. Start engine, turn the steering fully from lock to lock and back to the straight ahead position. This action is required to extinguish the Steering Angle Sensor (SAS) and Dynamic Stability Control (DSC) warning lamps. Stop the engine.

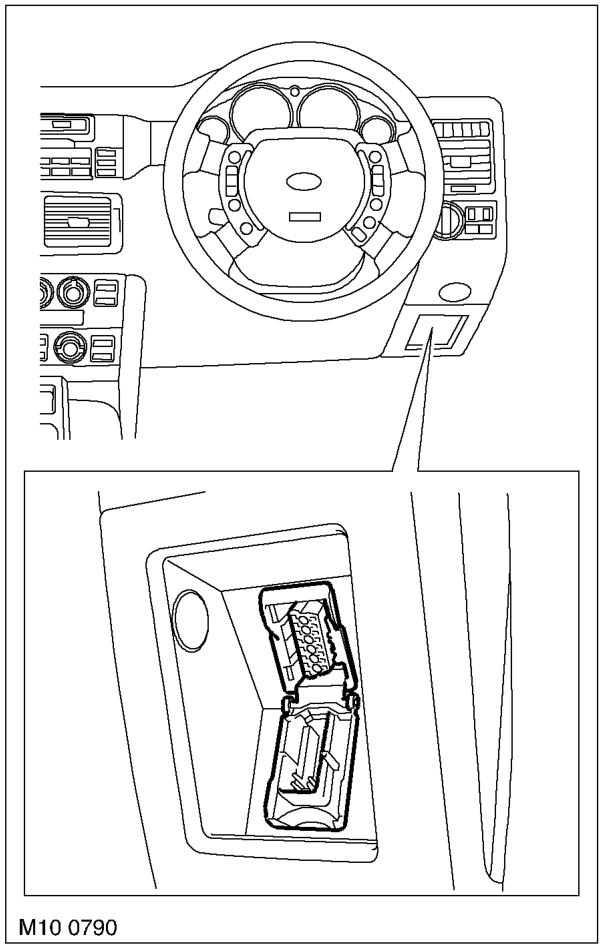

16. Release cover from drivers side vehicle diagnostic socket and connect the Testbook/T4 lead (DTC 0065A). Connect lead to Testbook/ T4 and switch on.
17. After Testbook/T4 has established communication with the vehicle, navigate to the Pre Delivery Inspection (PDI) button. Select PDI button and follow the Testbook/T4 programme. Release vehicle from transit mode, configure vehicle to market, set customer and dealer options (Including satellite navigation languages if necessary).
18. Disconnect Testbook/T4.
19. Synchronise the vehicle handsets: Ensure the vehicle is unlocked and the driver and passenger doors are closed.
20. Insert a key/remote handset in the ignition switch, turn the ignition switch to position 1 and back to position 0 in less than 5 seconds to put the BCU into initialisation mode. Continue the next procedure within 30 seconds of turning the ignition switch to position 0.
21. Remove the handset from the ignition switch.

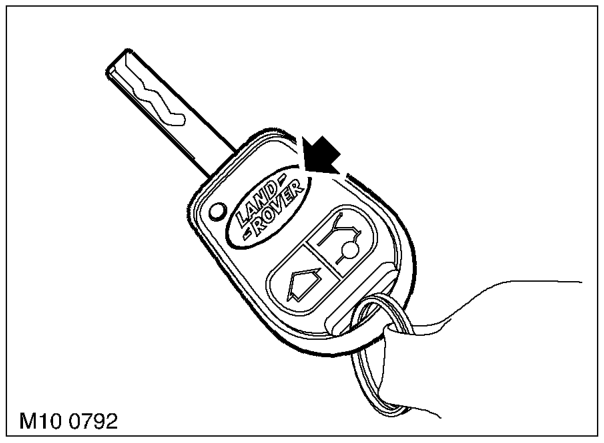

22. Press and hold the unlock button then, within 10 seconds, press the lock button 3 times
23. Release both buttons.
24. Successful initialisation is indicated by the BCU locking and unlocking the vehicle. If this does not occur, repeat the previous steps.
25. With the remaining handsets, press and hold the unlock button, then within 10 seconds, press the lock button 3 times. Begin the initialisation of each handset within 30 seconds of completing the previous initialisation. Failure to achieve this will result in the BCU dropping out of initialisation mode and the complete procedure will have to be started again.
26. Remove all internal, external transit protection and brake disc covers. Pay particular attention to areas where transit protection is damaged or missing.
