TRANSFER BOX

14

OVERHAUL

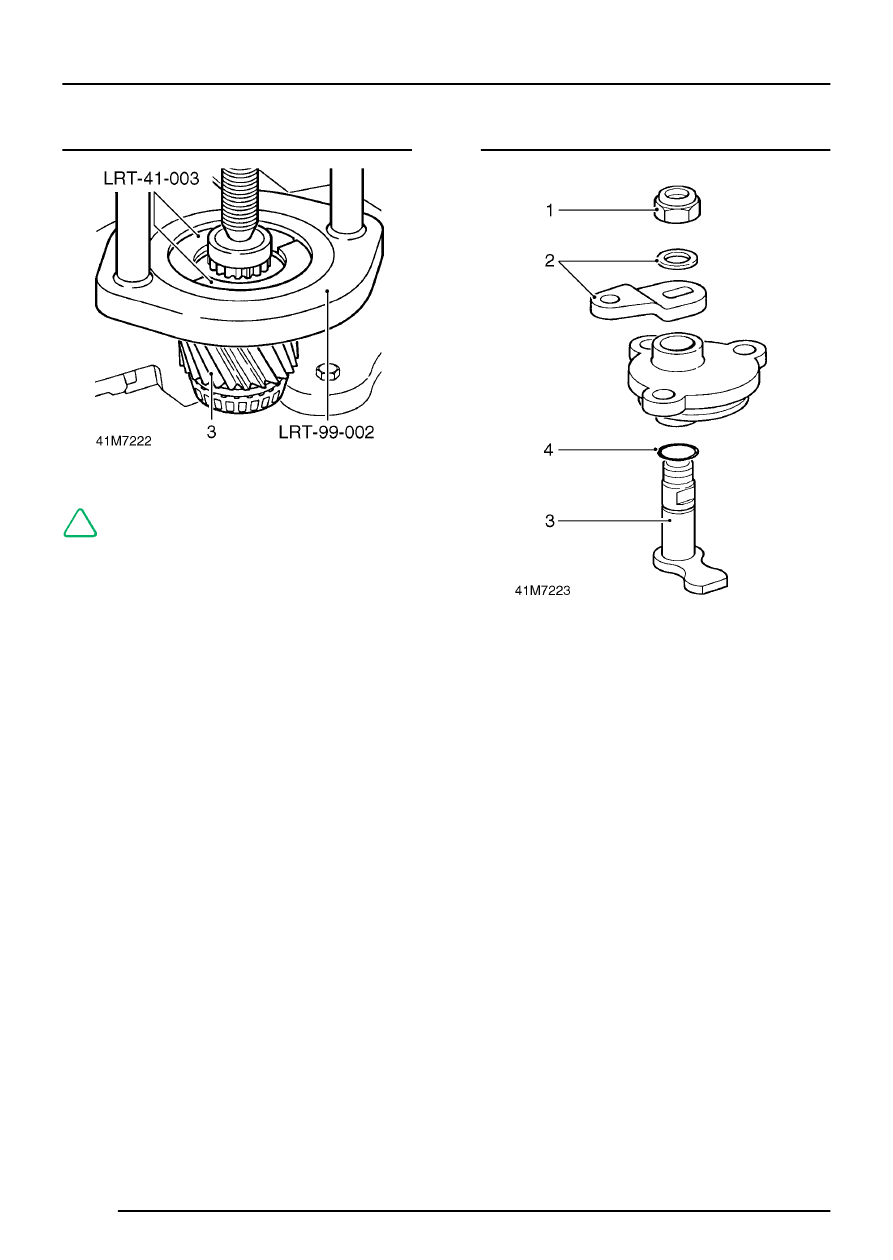

Mainshaft input gear assembly

NOTE: Defender input gear illustrated.

1. Secure hand press LRT-99-002 in a vice.
2. Assemble collars LRT-41-003 around bearing

to be removed.

3. Position mainshaft in hand press, remove and

discard bearing.

4. Repeat above procedure for remaining

bearing.

Differential lock selector

1. Remove and discard self-locking nut retaining

selector lever.

2. Remove washer and selector lever.
3. Withdraw selector finger and shaft from

housing.

4. Remove and discard ’O’ ring.
