LT230Q Transfer Box Overhaul: Dismantling Rear Output Housing
TRANSFER BOX
10
OVERHAUL
Rear output housing

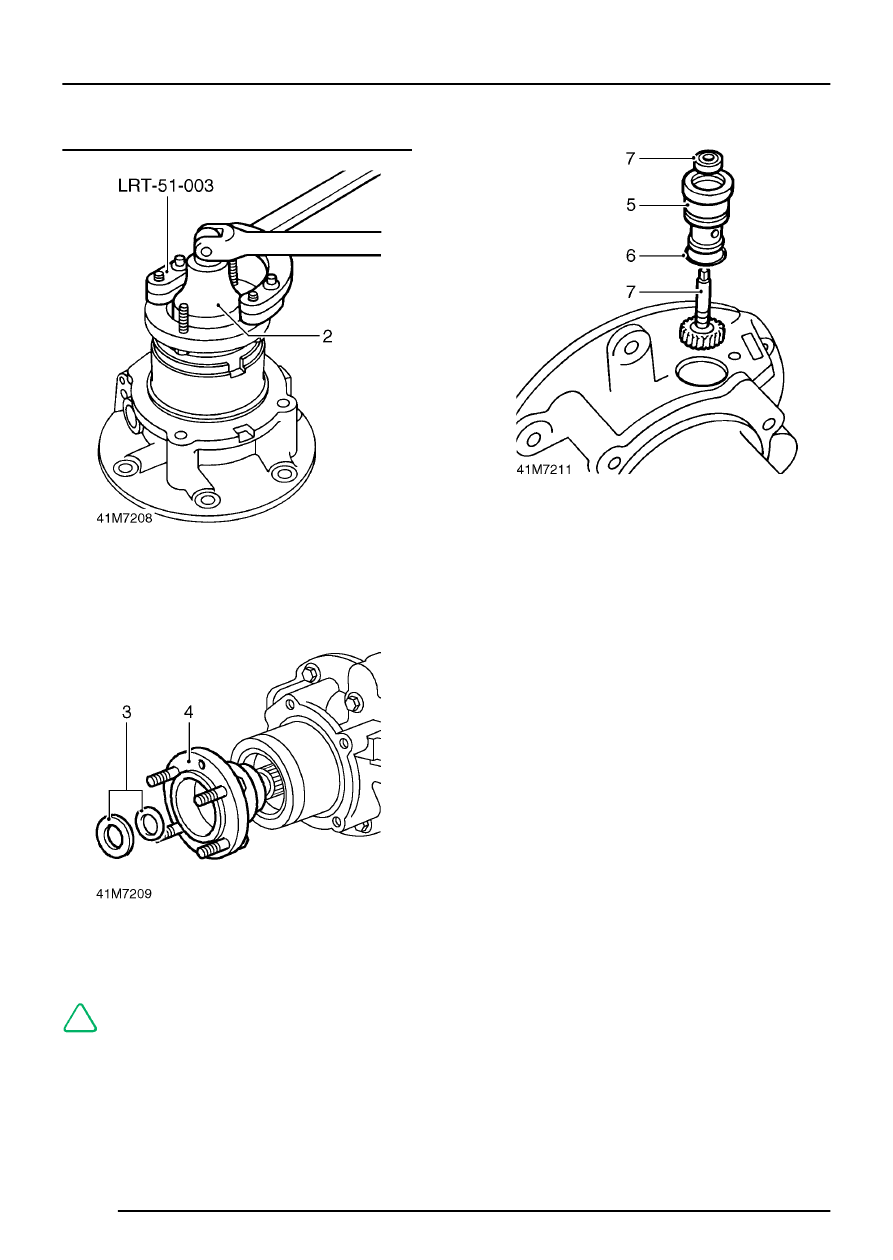

1. Position propeller shaft flange holding tool
LRT-51-003 to output shaft flange.
2. Remove and discard self-locking nut.
3. Remove steel and felt washers, discard felt
washer.
4. Remove output shaft flange together with
circlip.
NOTE: A replacement output flange will be
supplied together with new output shaft
oil seal.
5. Carefully lever speedometer driven gear and
housing out of rear output housing.
6. Remove and discard ’O’ ring.
7. Withdraw speedometer driven gear from
housing, remove and discard oil seal from
housing.
