LT230Q Transfer Box
TRANSFER BOX
OVERHAUL
11

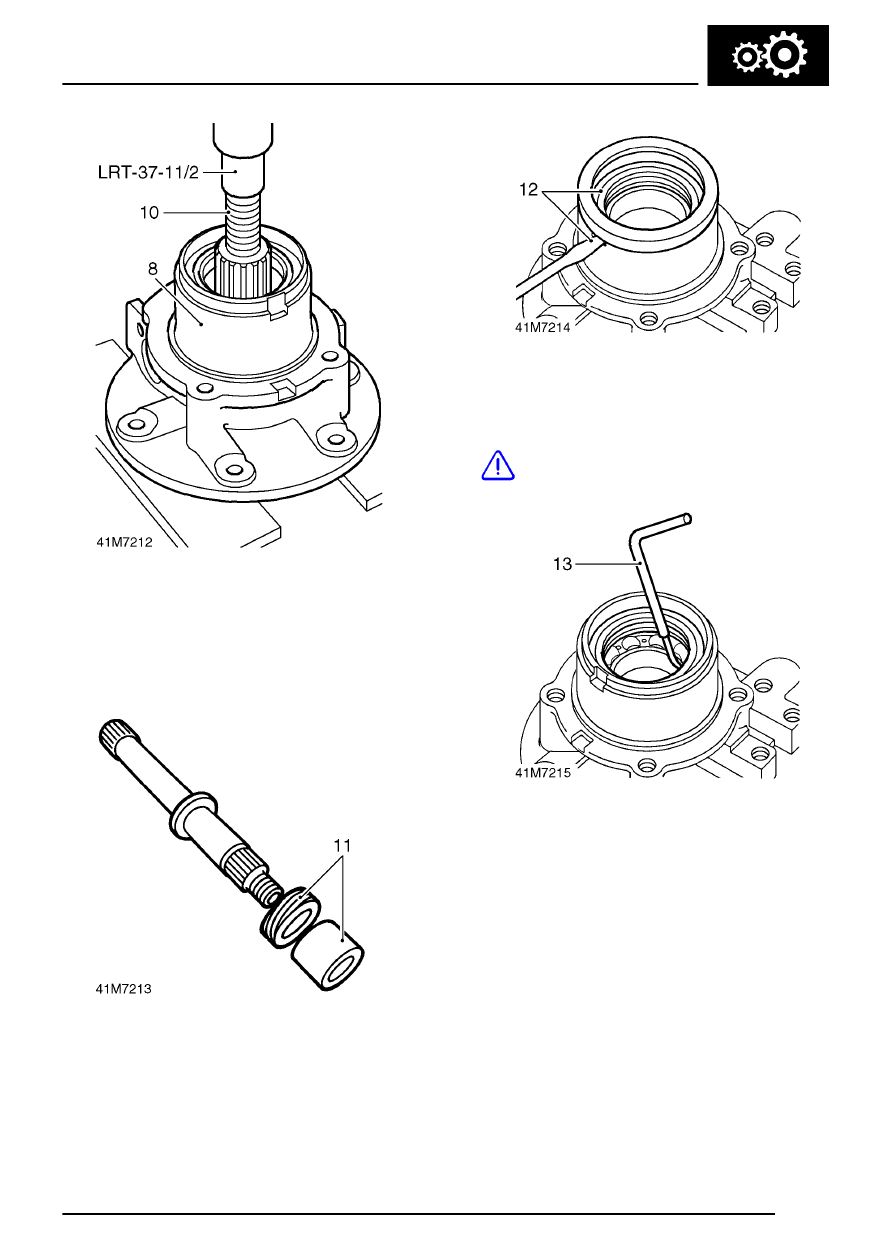

8. Position rear output housing on bed of hand
press.
9. Position thrust button LRT-37-11/2 between
end of output shaft and press mandrel.
10. Press output shaft out of housing.
11. Recover spacer and speedometer drive gear
from output shaft.
12. Using a screwdriver inserted in slot in rear
output housing, lever mud shield out of
housing.
CAUTION: Discard mud shield if it is
damaged.
13. Taking care not to damage rear output
housing, remove and discard output shaft oil
seal.
