TRANSFER BOXRear output housing · page 2 of 2
Rear output housing (page 2 of 2) – Land Rover LT230 Transfer Box

TRANSFER BOX

OVERHAUL

11

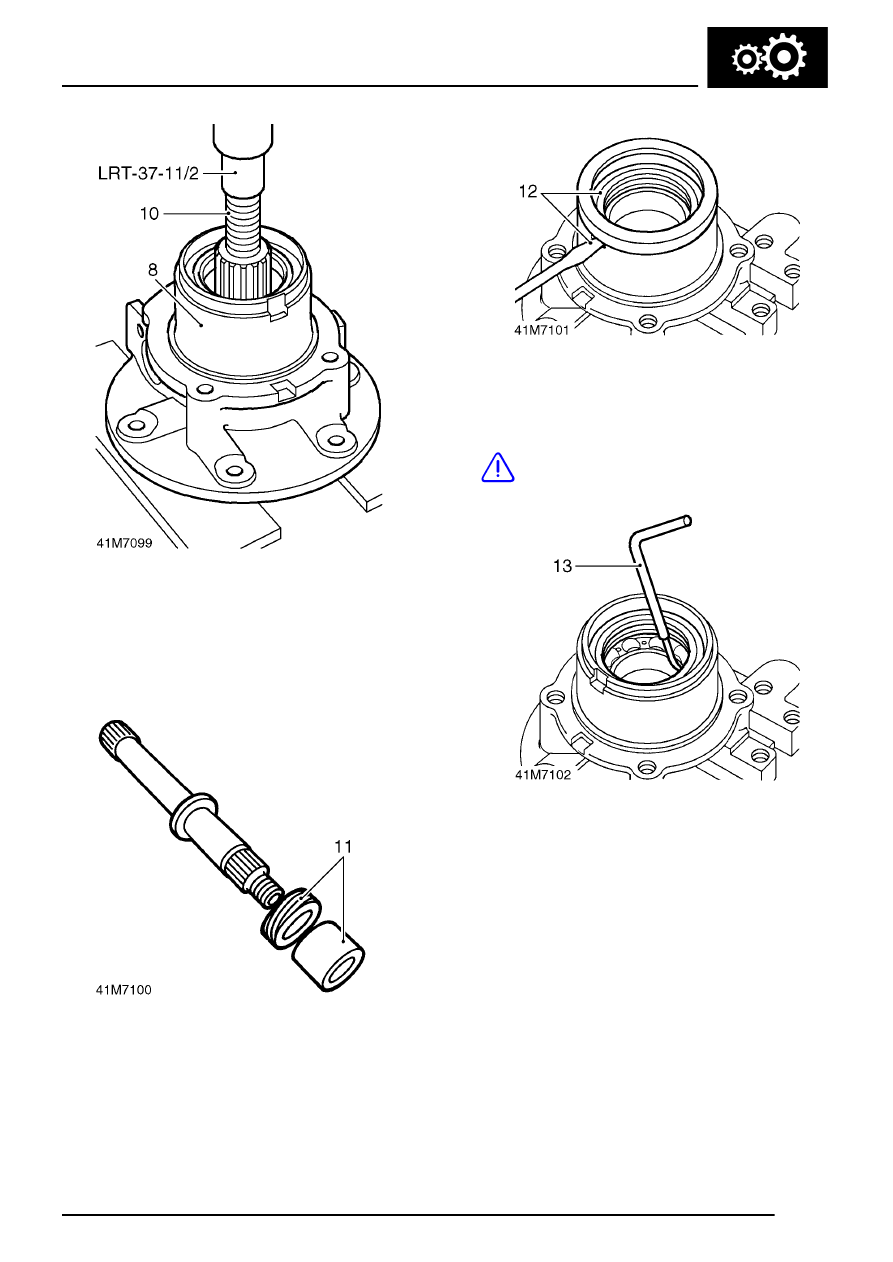

8. Position rear output housing on bed of hand

press.

9. Position thrust button LRT-37-11/2 between

end of output shaft and press mandrel.

10. Press output shaft out of housing.

11. Recover spacer and speedometer drive gear

from output shaft.

12. Using a screwdriver inserted in slot in rear

output housing, lever mud shield out of
housing.

CAUTION: Discard mud shield if it is
damaged.

13. Taking care not to damage rear output

housing, remove and discard output shaft oil
seal.
