Data link connector – circuit diagram
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1995
- Section
- Circuit diagram › Data link connector – circuit diagram
Data link connectorData link connector – circuit diagram

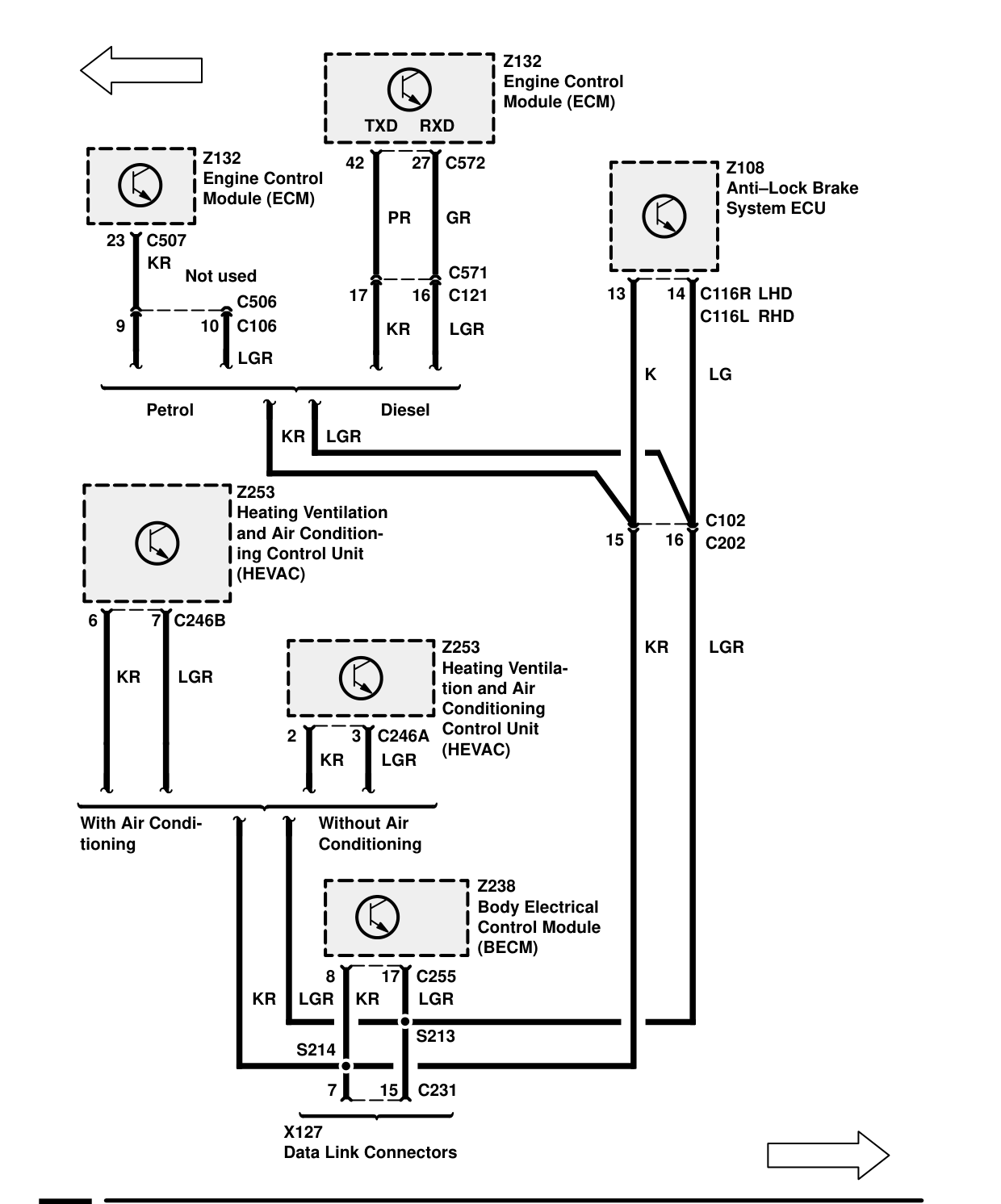

DATA LINK CONNECTOR – CIRCUIT DIAGRAM
Components on this page
- X127 Data Link Connectors
- Z108 Anti-Lock Brake System ECU
- Z132 Engine Control Module (ECM)
- Z238 Body Electrical Control Module (BECM)
- Z253 Heating Ventilation and Air Conditioning Control Unit (HEVAC)
