Power seats – circuit diagram
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1995
- Section
- Circuit diagram › Power seats – circuit diagram
Power seatsPower seats – circuit diagram

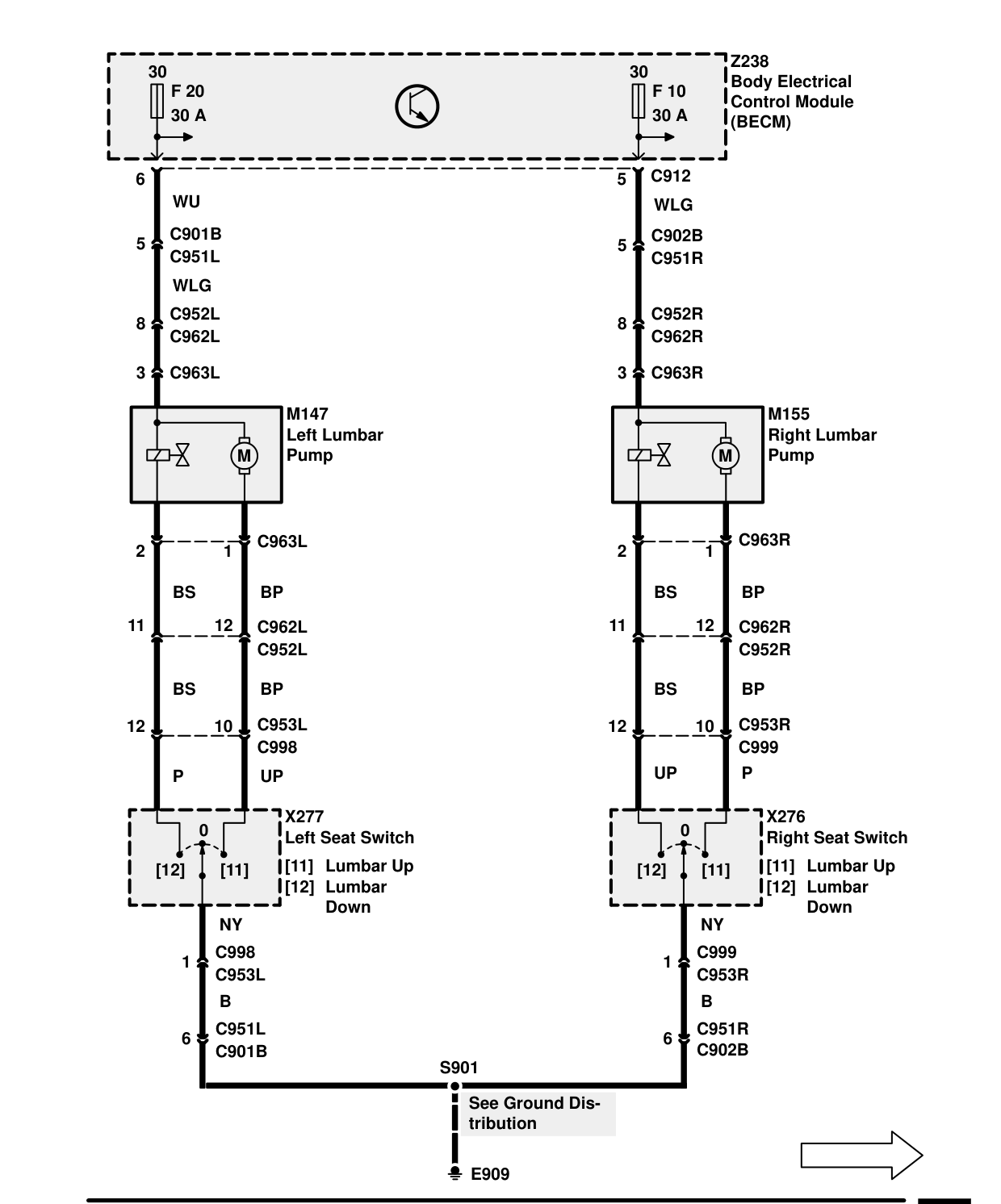

POWER SEATS – CIRCUIT DIAGRAM
Components on this page
- M147 Left Lumbar Pump
- M155 Right Lumbar Pump
- X276 Right Seat Switch
- X277 Left Seat Switch
- Z238 Body Electrical Control Module (BECM)
