HornsHorns – circuit diagram

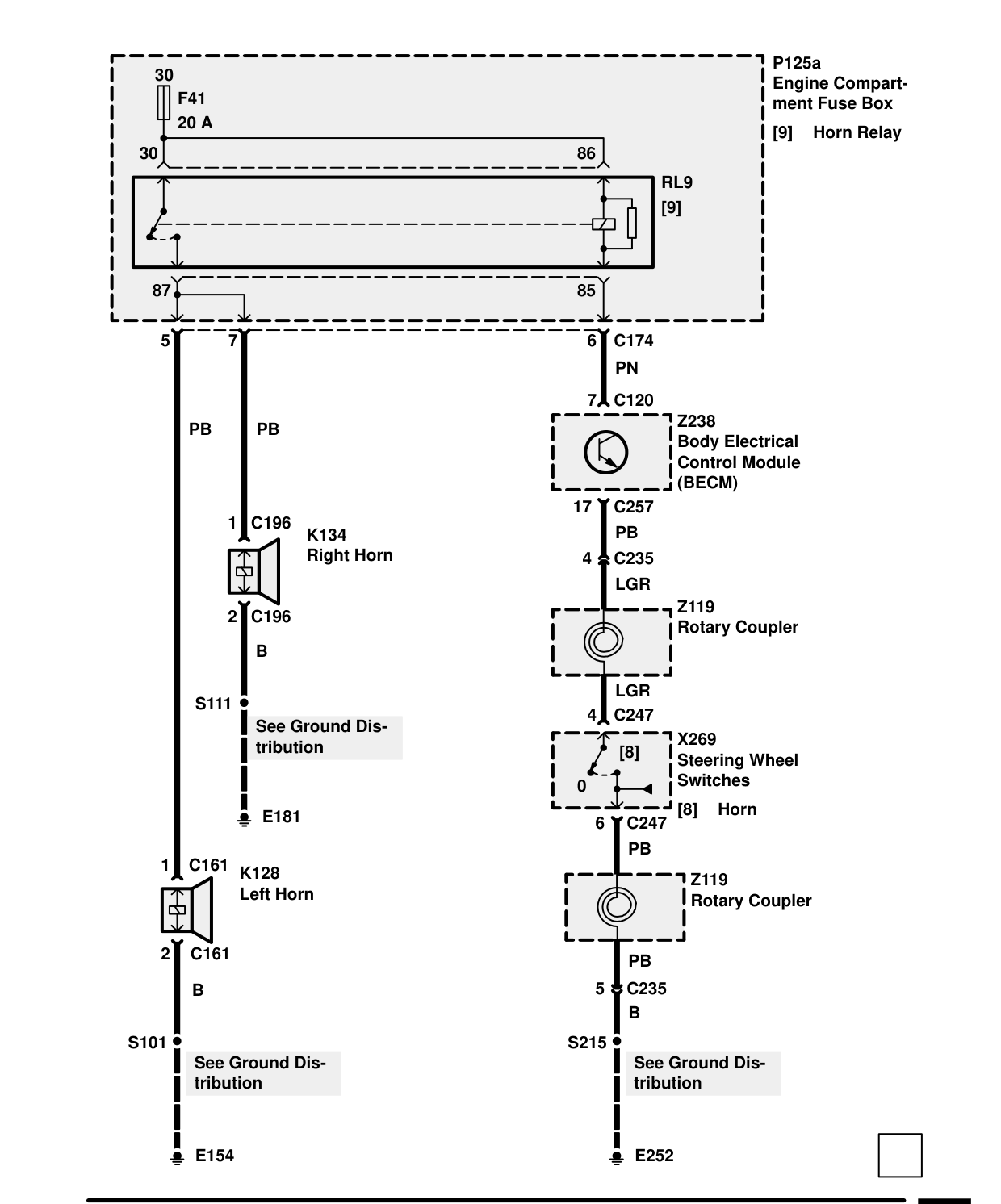

HORNS – CIRCUIT DIAGRAM
Components on this page
- K128 Left Horn
- K134 Right Horn
- X269 Steering Wheel Switches
- Z119 Rotary Coupler
- Z238 Body Electrical Control Module (BECM) 17 C257
