Diesel – circuit diagram
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1995
- Section
- Circuit diagram › Diesel – circuit diagram
DieselDiesel – circuit diagram

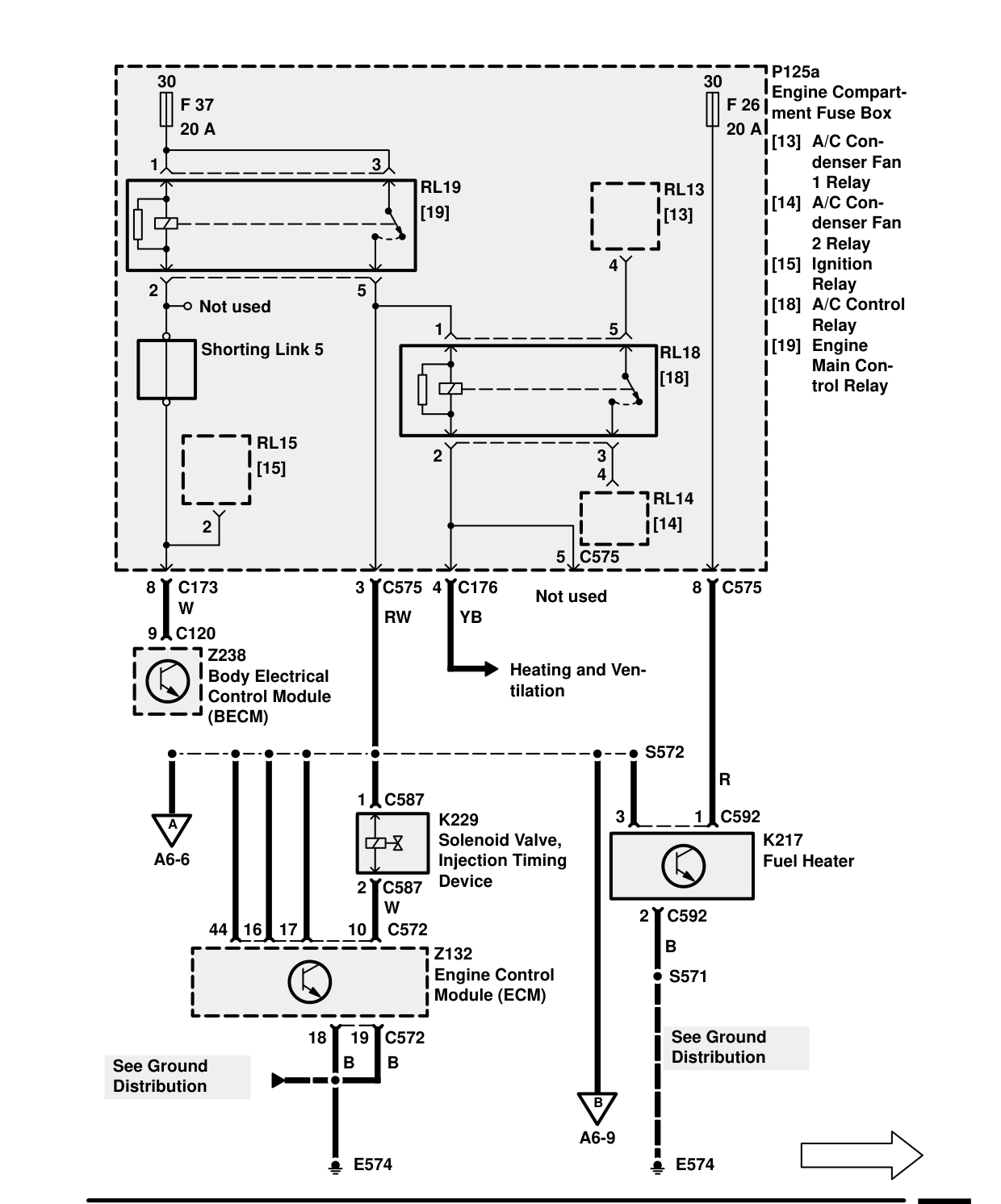

DIESEL – CIRCUIT DIAGRAM
Components on this page
- K217 Fuel Heater
- K229 Solenoid Valve, Injection Timing Device
- Z132 Engine Control Module (ECM)
- Z238 Body Electrical Control Module (BECM)
