DieselDiesel – circuit diagram

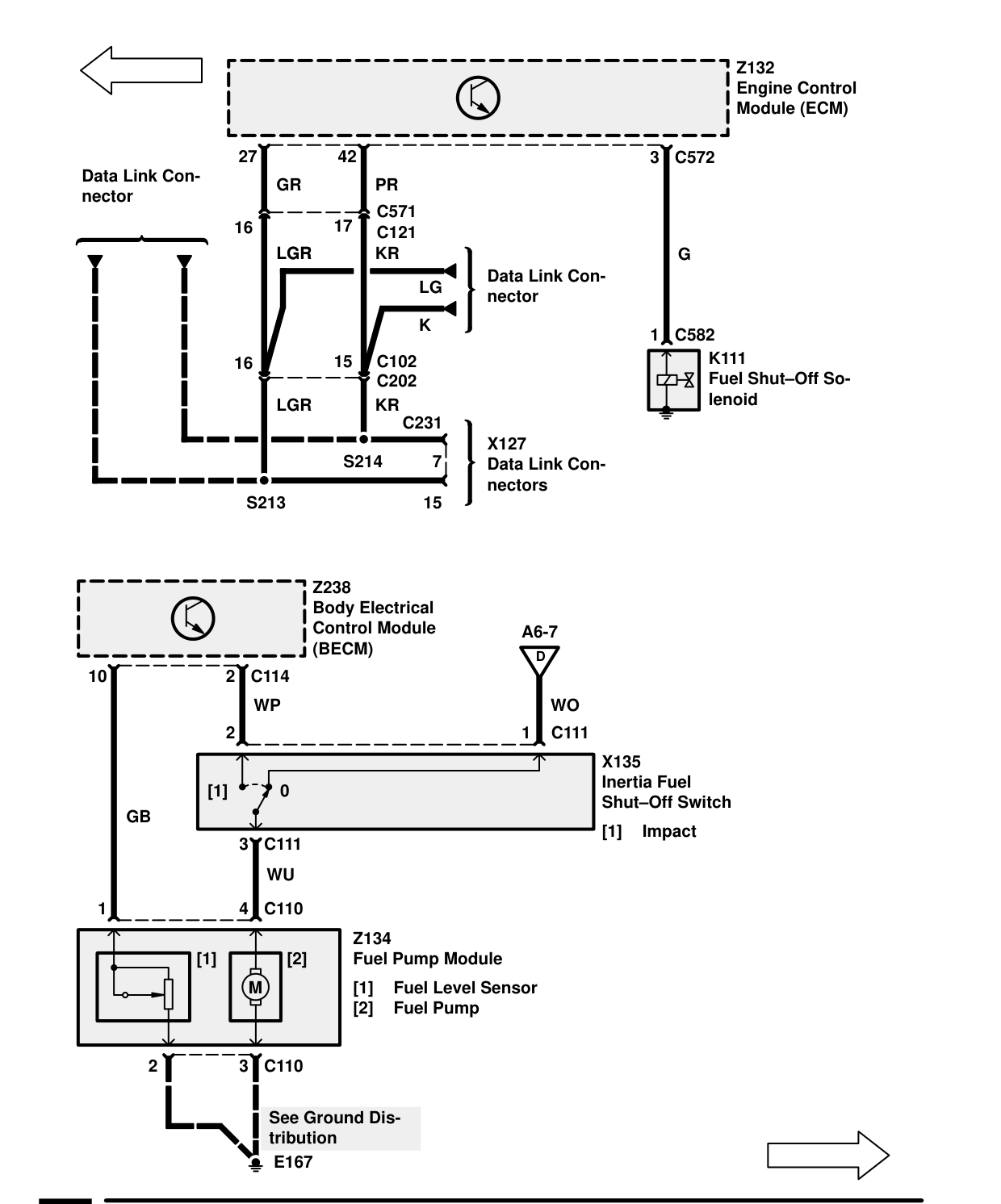

DIESEL – CIRCUIT DIAGRAM
Components on this page
- K111 Fuel Shut-Off Solenoid
- X127 Data Link Connectors
- X135 Inertia Fuel Shut-Off Switch
- Z132 Engine Control Module (ECM)
- Z134 Fuel Pump Module
- Z238 Body Electrical Control Module (BECM)
