Ground distribution – circuit diagram
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1995
- Section
- Circuit diagram › Ground distribution – circuit diagram
‹ Prev Ground distribution – circuit diagramNext › Ground distribution – ground distribution (petrol)
Ground distributionGround distribution – circuit diagram

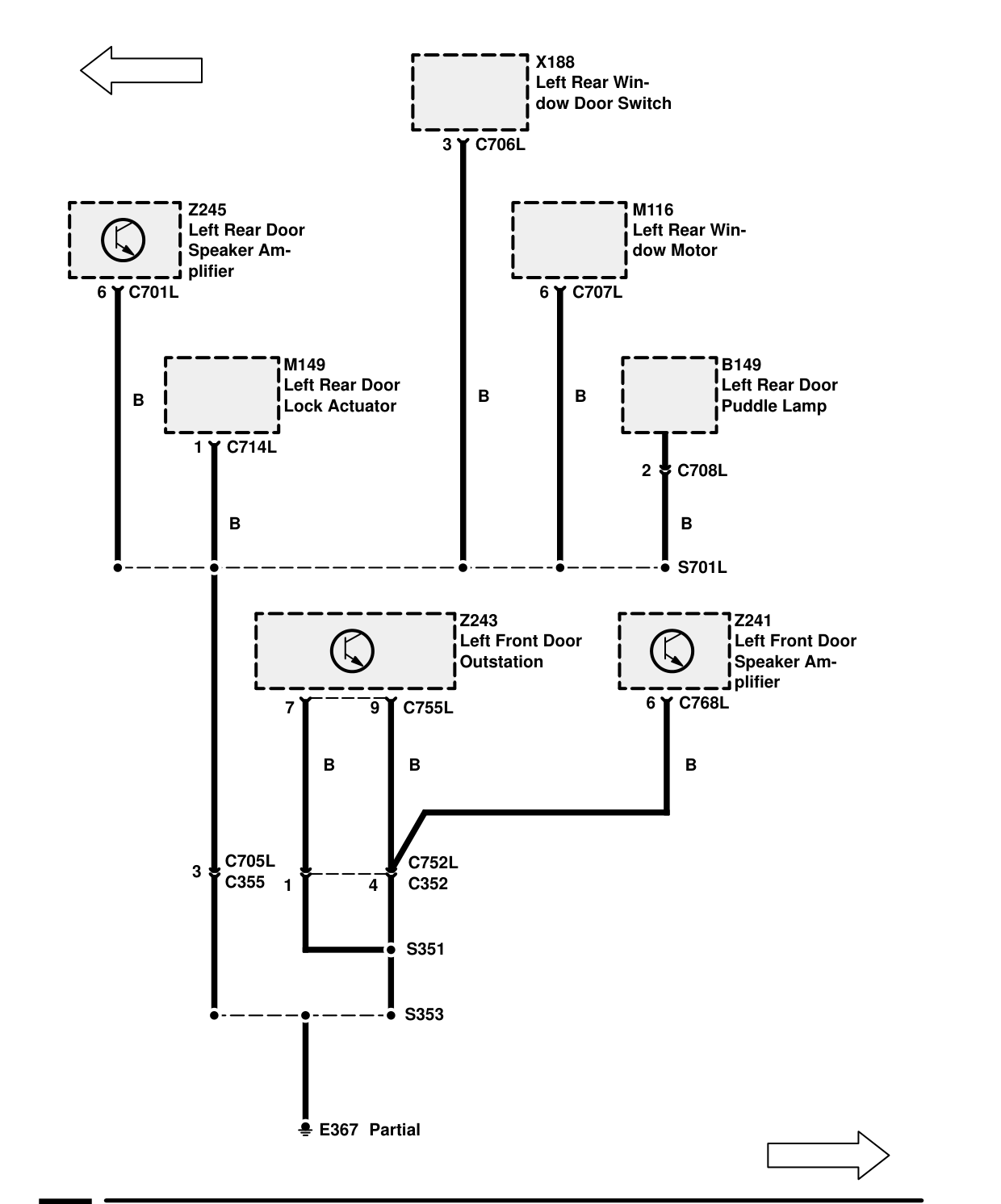

GROUND DISTRIBUTION – CIRCUIT DIAGRAM
Components on this page
- B149 Left Rear Door Puddle Lamp
- E367 Partial
- M116 Left Rear Window Motor
- M149 Left Rear Door Lock Actuator
- X188 Left Rear Window Door Switch
- Z241 Left Front Door Speaker Amplifier C768L 6 C755L 9
- Z243 Left Front Door Outstation
- Z245 Left Rear Door Speaker Amplifier C701L 6
