Heating and ventilation (without A/C) – circuit diagram
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1995
- Section
- Circuit diagram › Heating and ventilation (without A/C) – circuit diagram
‹ Prev Heating and ventilation (without A/C) – circuit operationNext › Heating and ventilation (without A/C) – circuit diagram
Heating and ventilation (without A/C)Heating and ventilation (without A/C) – circuit diagram

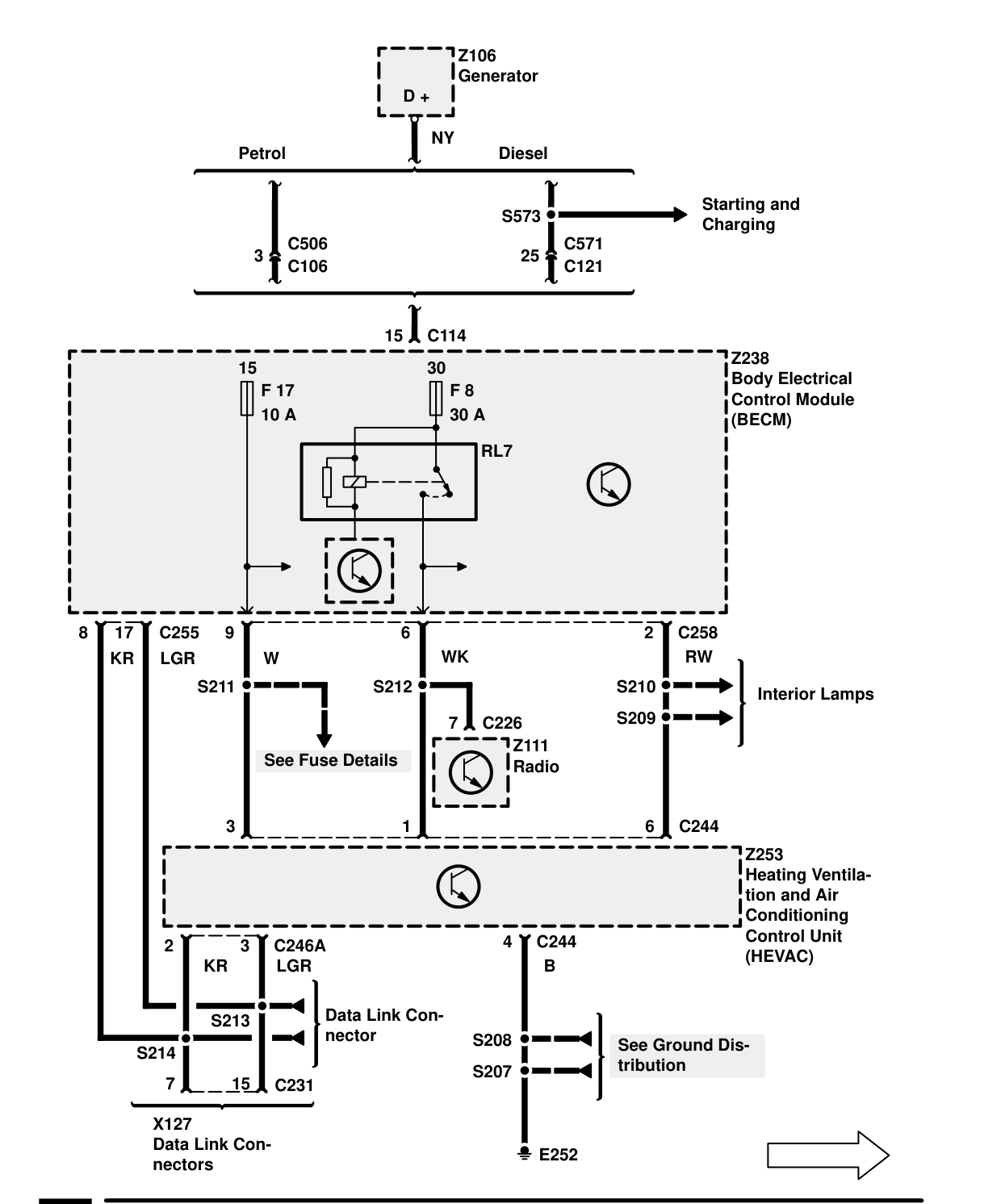

HEATING AND VENTILATION (WITHOUT A/C) – CIRCUIT DIAGRAM
Components on this page
- S573 Starting and Charging
- X127 Data Link Connectors
- Z106 Generator
- Z111 Radio
- Z238 Body Electrical Control Module (BECM)
- Z253 Heating Ventilation and Air Conditioning Control Unit (HEVAC)
