Warnings and indicators – circuit diagram
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1995
- Section
- Circuit diagram › Warnings and indicators – circuit diagram
Warnings and indicatorsWarnings and indicators – circuit diagram

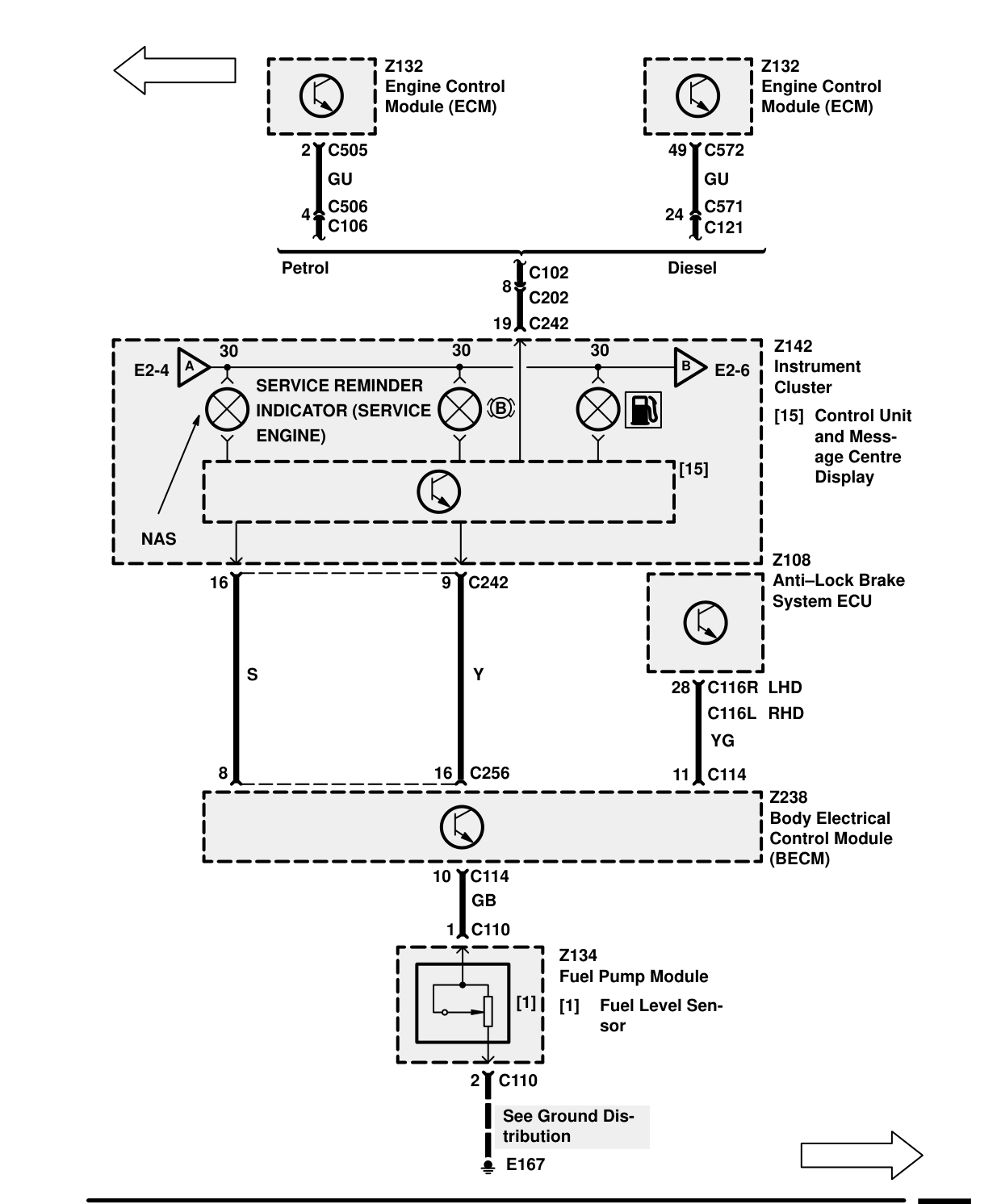

WARNINGS AND INDICATORS – CIRCUIT DIAGRAM
Components on this page
- Z108 Anti-Lock Brake System ECU
- Z132 Engine Control Module (ECM)
- Z134 Fuel Pump Module
- Z142 Instrument Cluster
- Z238 Body Electrical Control Module (BECM)
