Drive Belt: Testing and Inspection (page 6 of 6)
- Make
- Mazda
- Model
- 3
- Engine
- L4-2.5L
- Year
- 2010
- Section
- Drive Belt
1. Remove the aerodynamic under cover No.2 and splash shield as a single unit. See: Body and Frame/Splash Guard/Service and
Repair/Aerodynamic Under Cover No.2 Removal/Installation See: Body and Frame/Splash Guard/Service and Repair/Splash Shield
Removal/Installation

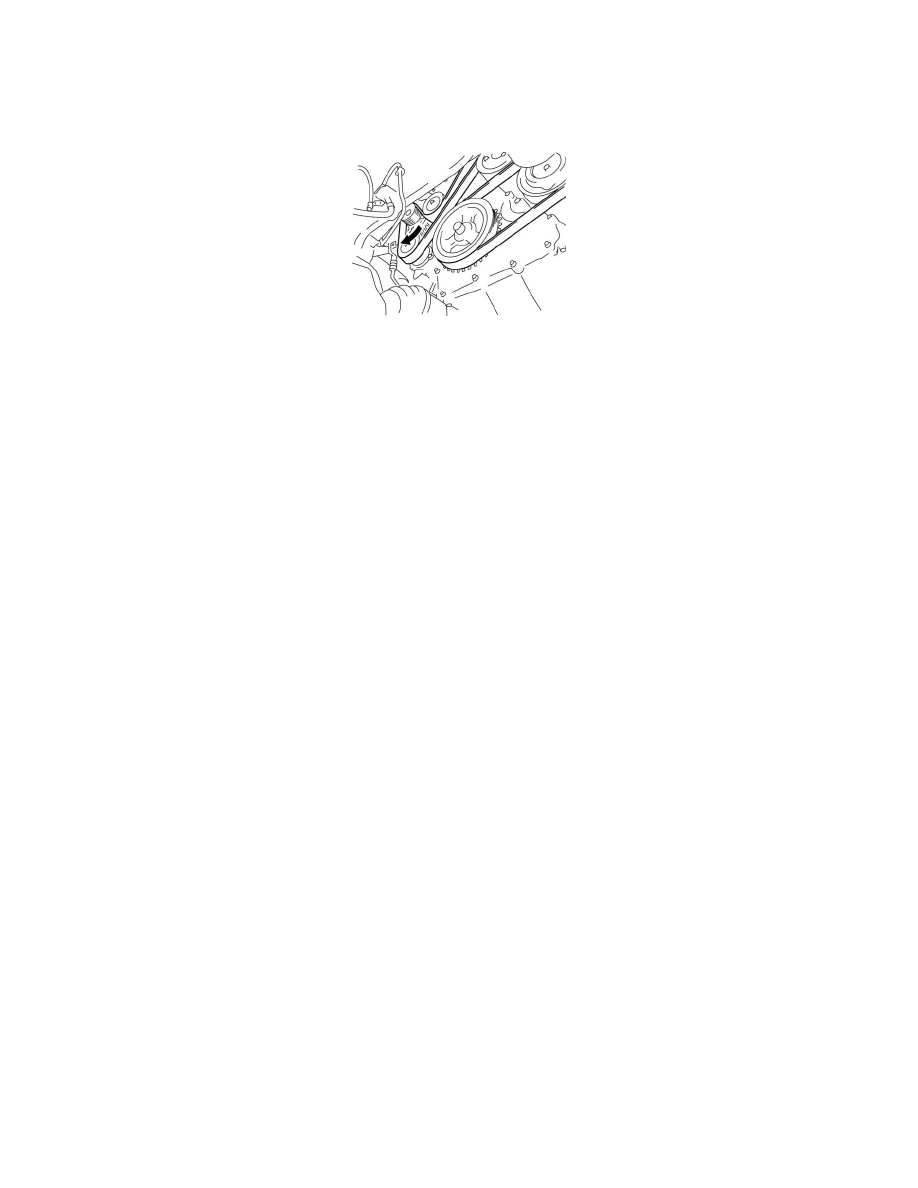

2. Rotate the drive belt auto tensioner in the direction shown in the figure and remove the drive belt.
Installation
1. Install the drive belt.
2. Install the aerodynamic under cover No.2 and splash shield as a single unit. See: Body and Frame/Splash Guard/Service and Repair/Aerodynamic
Under Cover No.2 Removal/Installation See: Body and Frame/Splash Guard/Service and Repair/Splash Shield Removal/Installation
