Drive Belt: Diagrams

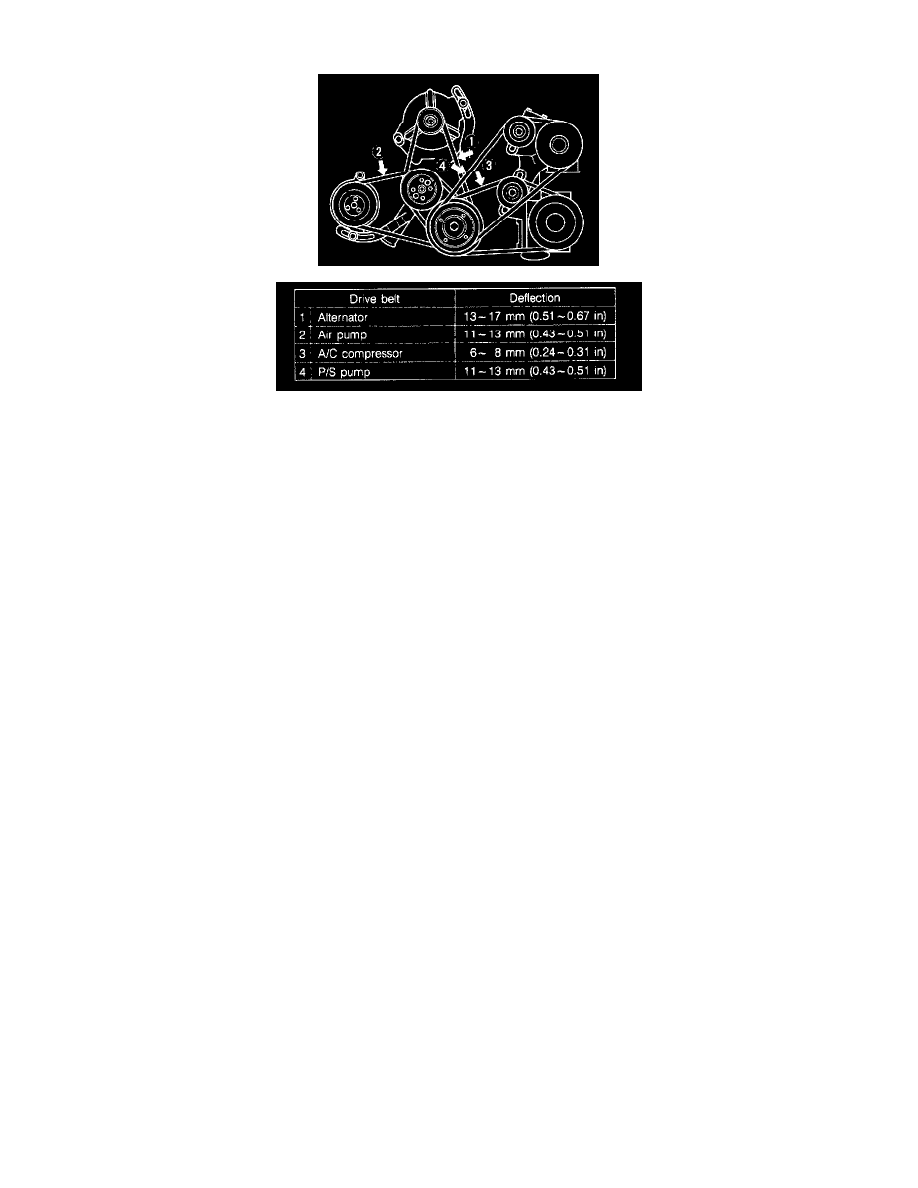

Drive Belt
1. Check the drive belts for wear, cracks, or fraying, replace if necessary.
2. Check the drive belt tension by applying moderate pressure (98 N, 10 kg, 22 lb) midway between the pulleys. Adjust if necessary.
