CONTROL SWITCH - 2000MY ON

Service repair no - 82.20.07

Remove

  1. Remove console closing panel. See BODY, Interior trim components.

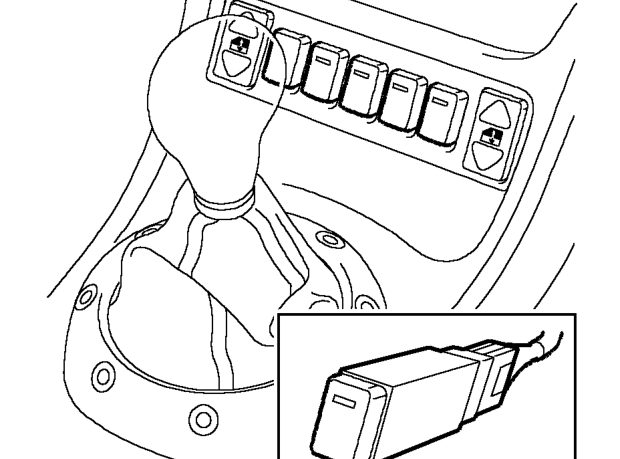

Control switch - 2000my on – Remove console closing panel. See BODY, Interior trim components.
  1. Release switch from centre console.
  2. Disconnect multiplug from switch.
  3. Remove switch.

Refit

  1. Connect multiplug to switch and fit switch to centre console.
  2. Fit console closing panel See BODY, Interior trim components.

EVAPORATOR

Service repair no - 82.25.20

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove fascia panel. See BODY, Interior trim components.
  2. Remove thermostatic expansion valve. See this section.

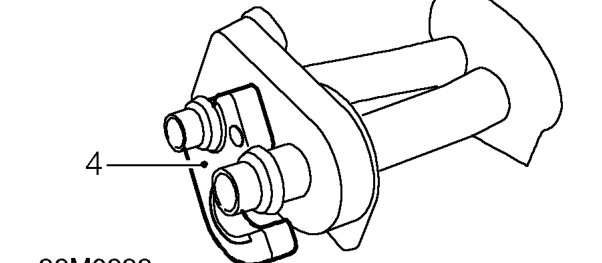

Evaporator – Remove thermostatic expansion valve. See this section.
  1. Remove pipe clamp from evaporator pipes.
  2. Remove screen vent duct from heater.

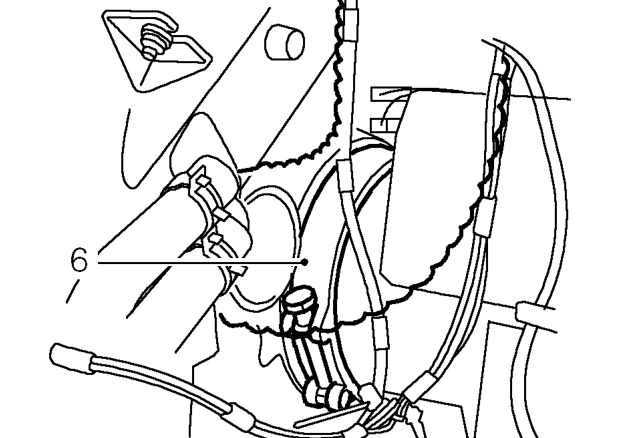

Evaporator – Remove screen vent duct from heater.
  1. Remove clamp securing evaporator to heater.
