Air conditioningControl switch - 2000my on · page 2 of 3
Diagram

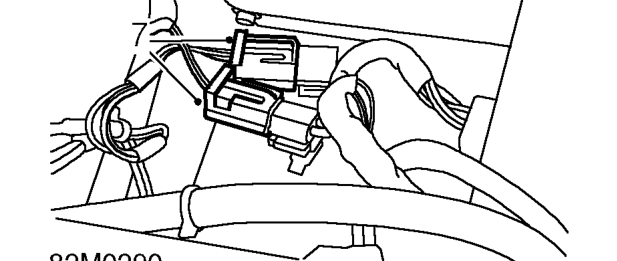

  1. Disconnect 2 multiplugs from evaporator.
Disconnect 2 multiplugs from evaporator.

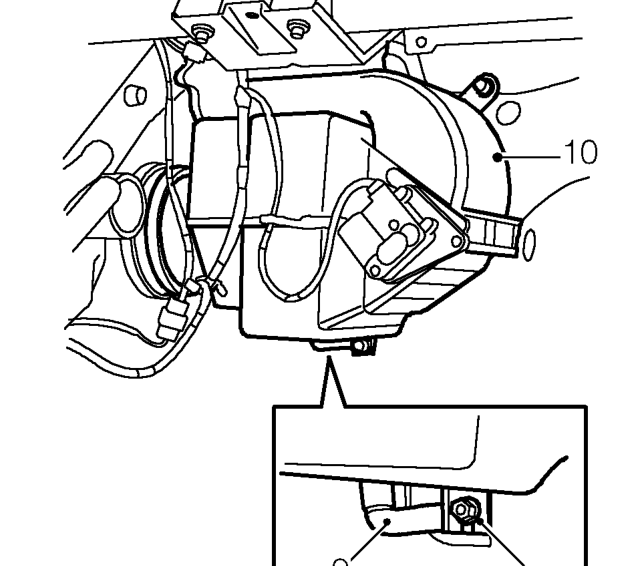

  1. Remove 2 nuts securing evaporator to lower dash panel.
  2. Release evaporator drain hose from evaporator.
  3. Remove evaporator assembly.
Remove evaporator assembly.

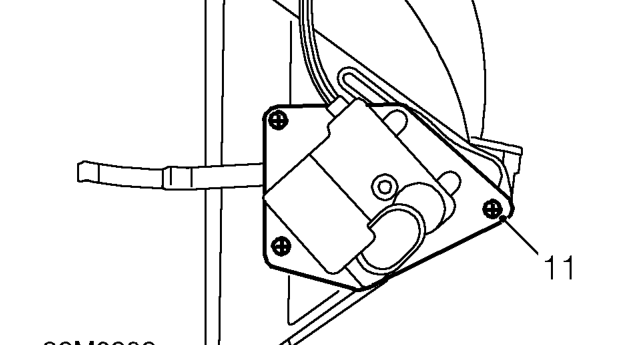

  1. Remove 3 screws securing recirculation servo to casing and position aside.
Remove 3 screws securing recirculation servo to casing and position aside.

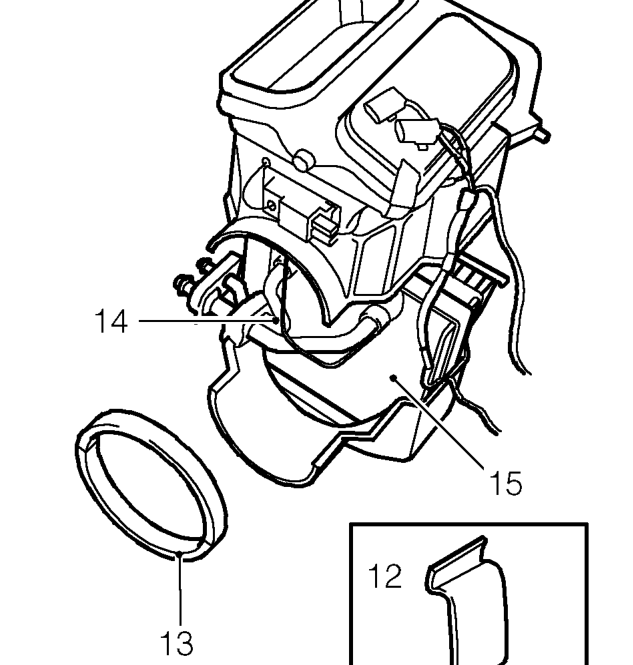

  1. Remove 7 clips securing casing halves.
  2. Remove and discard foam seal from output duct.
  3. Release thermocouple from evaporator matrix.
  4. Separate evaporator casing and remove evaporator matrix.
