FRONT BRAKE CALIPER COMPONENTS

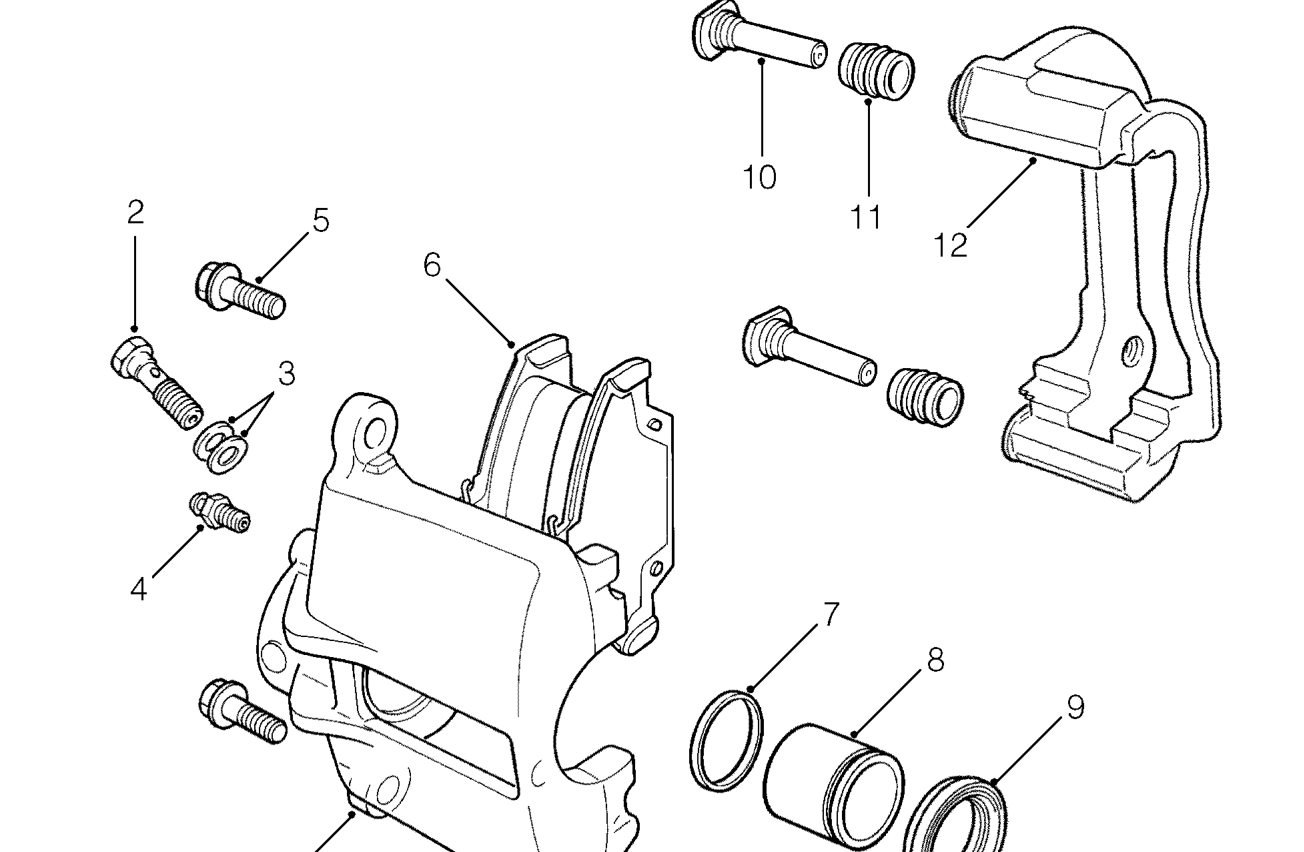

Front brake caliper components
  1. Caliper body
  2. Hose banjo bolt
  3. Hose banjo washer
  4. Bleed screw
  5. Guide pin bolt
  6. Brake pad
  7. Piston seal
  8. Piston
  9. Dust cover
  10. Guide pin
  11. Boot
  12. Caliper carrier
