Brakes (Handbrake operation): Description and operation

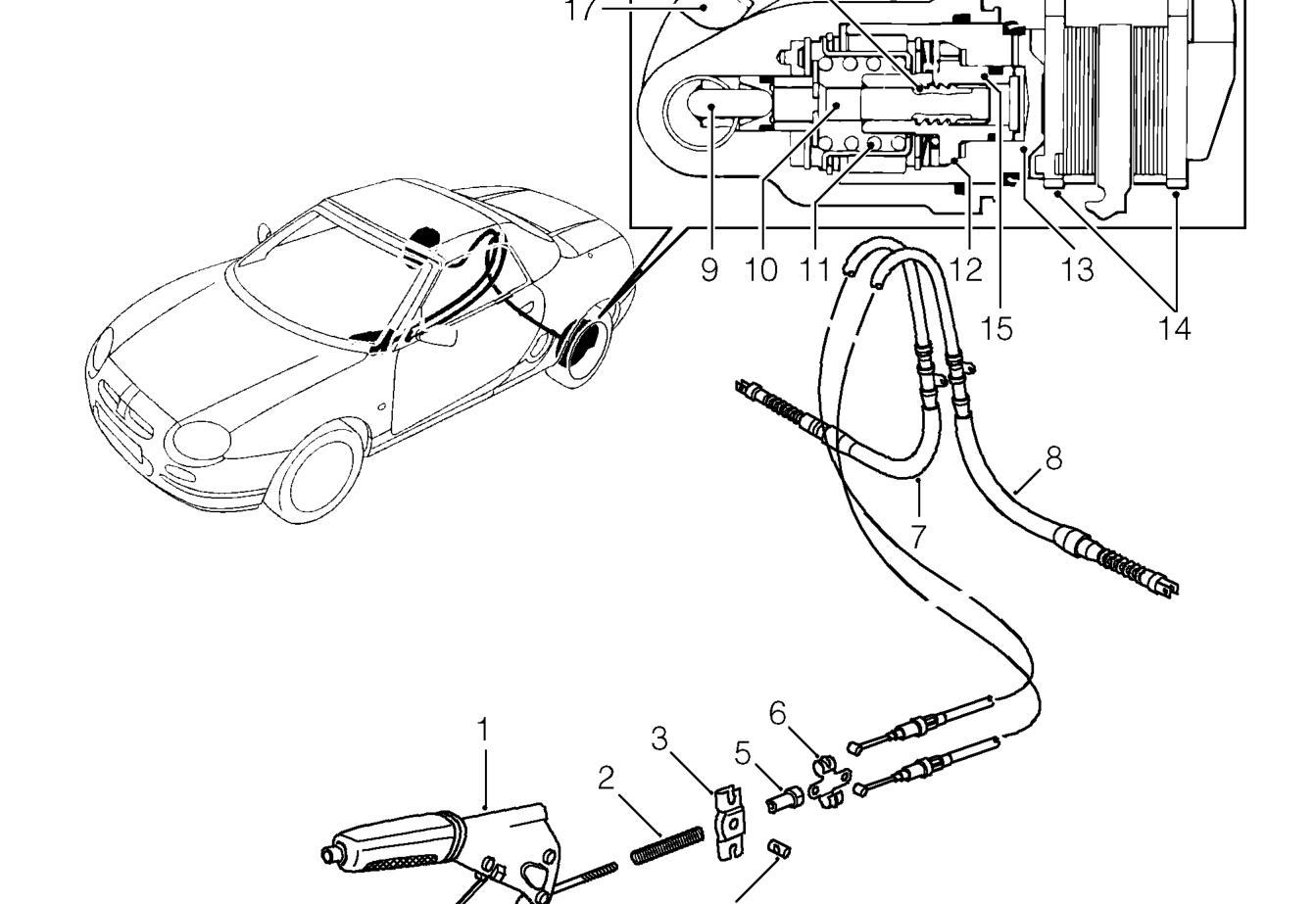

HANDBRAKE OPERATION

1. Handbrake lever
2. Compensator spring
3. Compensator
4. Lever to compensator, retainer
5. Adjuster nut
6. Handbrake cable, abutment bracket
7. Handbrake cable, RH
8. Handbrake cable, LH
9. Plunger

The handbrake operates on both rear discs via two rear cables, compensator and an intermediate rod which connects to the handbrake lever.

10. Push rod
11. Spring
12. Cone seating
13. Piston
14. Brake pads
15. Adjuster nut
16. Push rod thread
17. Caliper lever

As the handbrake lever is applied, movement is transmitted through the intermediate rod to the compensator which, in turn, transmits movement to the two rear cables. Each rear cable pulls on a lever on a rear caliper.
